Vandal Resistance Analog SIP Telephone Emergency Self-service Public Telephone for Bank-JWAT203

Short Description:

The public telephone is an answering telephone designed for the occasions where various protection levels are not particularly high and it is necessary to use this telephone. Using cold-rolled steel as the metal housing, the telephone has anti-corrosion and anti-destructive properties. If it is used for outdoors, our team can strengthen the protection level to meet the outdoor waterproof and dustproof defend standards, durable, long life, Ningbo joiwo is the best choice for industrial phones.

With the production test with many tests like electroacoustic test,FR test,High&Low temperature test,working life test etc.,each waterproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of waterproof telephone for you.




Product Detail

Product Tags

Product Introduction

Public Telephone is designed for emergency communication where reliability efficiency and safety are of prime importance.The body of the telephone is made of Cold rolled steel, could be chosen by stainless steel optional, very strong material, can be powder coated with different colors,used with generous thicknesses. The degree of protection is IP54-IP65.

Features

1.Standard Analogue phone. Phone line powered.
2.Robust housing, constructed of cold rolled steel with powder coated
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Zinc alloy keypad with 4 speed dial buttons.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Weather proof protection IP54.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12. CE, FCC, RoHS, ISO9001 compliant.

Application

CAAVAV (1)

This Public Telephone is Ideal for outdoor, Railway applications, Tunnels,Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals,office,water park, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
 Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume ≥80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Anti-vandalism Level IK09
Installation Wall-mounted

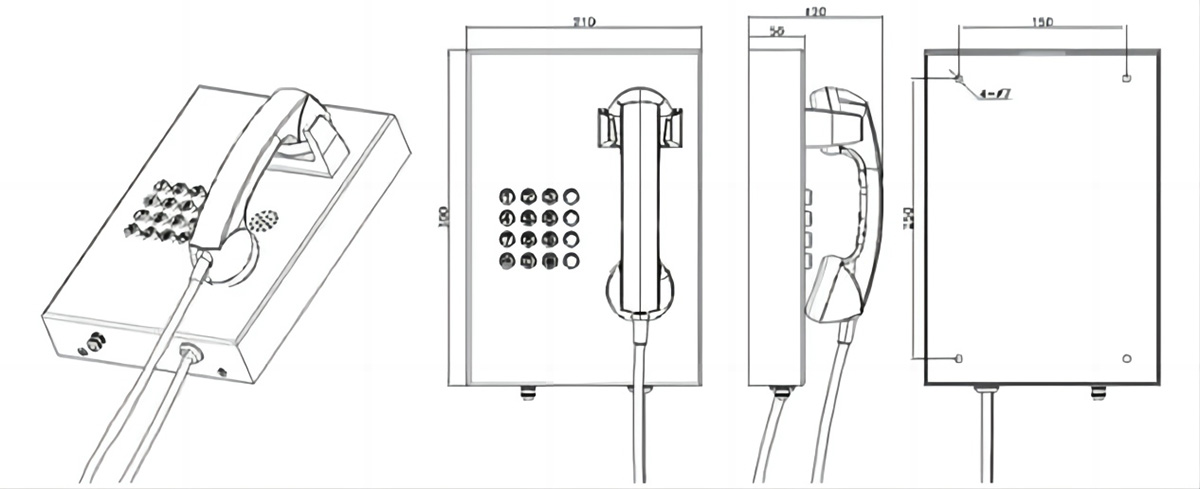

Dimension Drawing

ACV

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
