Industrial  Lift Intercom Elevator phone for emergency Telephone-JWAT409

Short Description:

This JWAT409 is a fully electronic telephone that incorporates many features found on modern commercial telephones. It provides hands-free loudspeaking communication facilities, as intercoms PBX switching, or coupled direct to the public telecom network.

Intercom is a flush or surface mounted unit. When installed with suitable interface sealants, a very high IP water resistant rating can be achieved.

With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Intercom Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the industrial communication.






Product Detail

Product Tags

Product Introduction

This JWAT409 Lift Intercom Elevator phone provides hands-free loudspeaking communication through the existing Analog Telephone line or VOIP network and is suitable for a sterile environment.
The body of the telephone is made of SUS304 stainless steel material ,Vandal resistant,Incoming calls are indicated by a flashing LED. With Two function button , In Analog type , one could be SOS button, the other one could be speaker button; In Voip type, Two button for SOS emergency call or preset other functions like volume adjustable.
Several versions are available, color customized，with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad could be customized.

Features

1.Traditional analog phone.There is a SIP version available.
2. Robust housing, Robust housing, made of 304 stainless steel.
3.Stainless steel buttons that are resistant to vandalism.Optional LED button indicator.
4.All-weather protection ranging from lP54 to IP65.
5.Two emergency call buttons
6. With an external power supply, the sound level might exceed 90dB.
Hands-free operation is available.
8.It is flush mounted.
9.RJ11 screw terminal pair cable is used for connection.
10.A spare telephone part produced by hand is available.
11. Compliant with CE, FCC, RoHS, and ISO9001.

Application

VAV

The Intercom usually used in Food Factory, Clean room, Laboratory, Hospital Isolation areas, Sterile areas, and other restricted environments. Also available for Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Anti-vandalism Level Ik10
Atmospheric Pressure 80～110KPa
Weight 2.5kg
Relative Humidity ≤95%
Installation Embedded

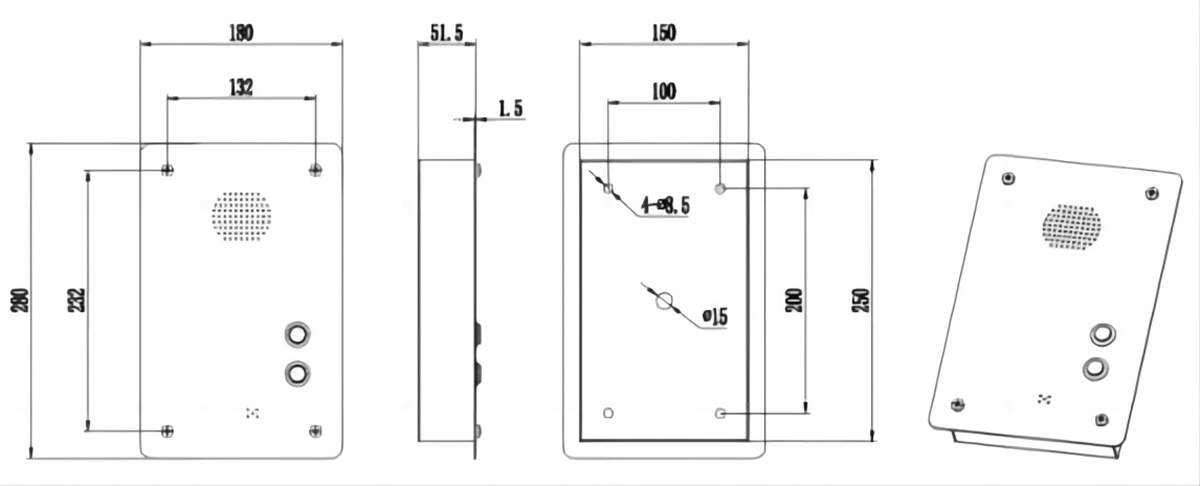

Dimension Drawing

AVA

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
