1×4 zinc rugged alloy fuel dispenser metal keypad B510

Short Description:

It is mainly for fuel engine and other public infrastructures.

As an integrated factory in telecommunication filed, we take it that provide reliable, delicate industrial and military keypads and telephone handsets as our company mission and focus on to be the global leader in industrial keypad and telecommunication handsets.


Product Detail

Product Tags

Product Introduction

As a 1x4 design, this keypad was designed for 4x4 fuel dispenser keypad to meet the market demand. With this tiny keypad, some other functional buttons could be added here and with willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments features, it also could be used in some other machines with control panel.
lf we matched material of the item you selected in stock with lower value, we can send you some free samples for test, but we need your comments after tests.

Features

1.We could customize button layout as your request completely with same structure in the lowest non-profit tooling cost.
2.For this keypad, we have low MOQ request with 100 units and the keypad connector is available.
3.The delivery date is flexible and it could be controlled by ourselves.

Application

vav

It is mainly for access control system, industrial telephone,vending machine, security system and some other public facilities.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 2 million time per key

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60kpa-106kpa

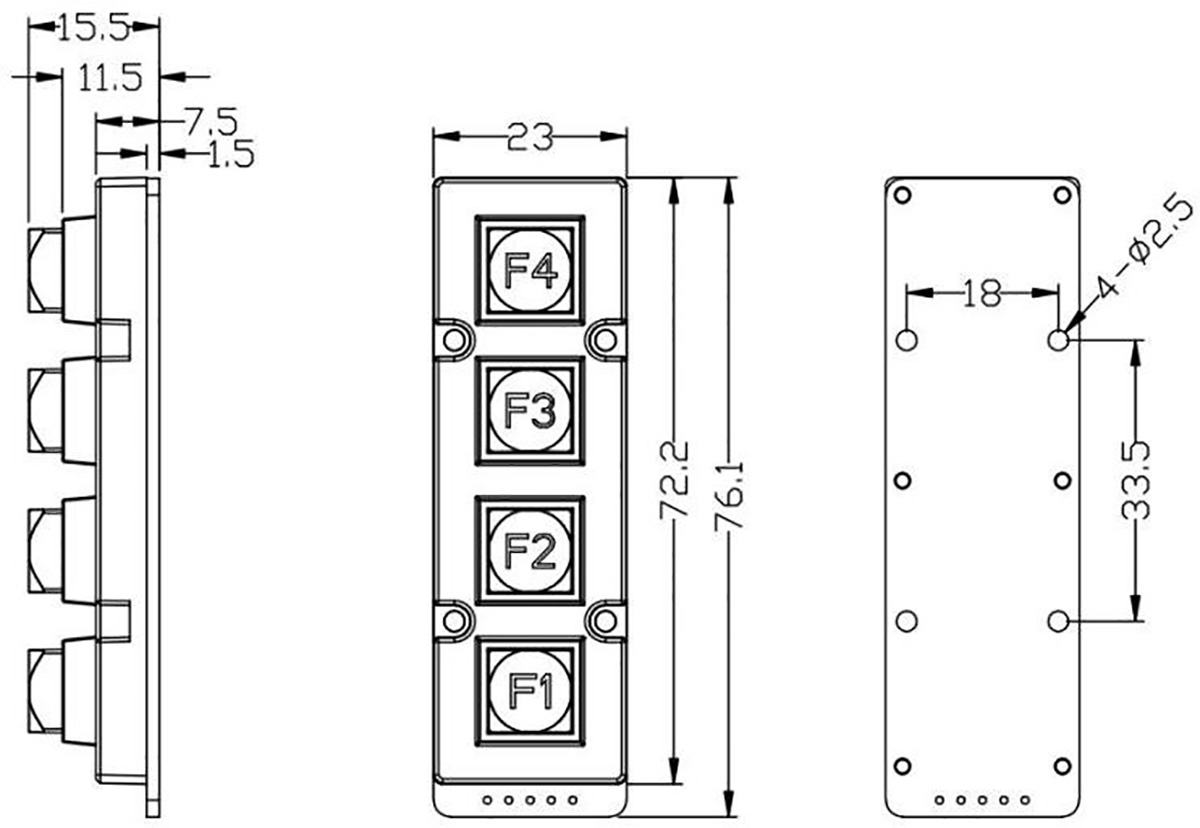

Dimension Drawing

AVAVB

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
