plastic LED ABS matrix keypad for elevator machine B203

Short Description:

It  widely used for vending machine, security system and some other public facilities.

Our company with 14 years’ development, it has 6,000 square meters of production plants and 80 employees now, which has the ability from original production design, molding development, injection molding process, sheet metal punching processing, mechanical secondary processing, assembly and oversea sales.


Product Detail

Product Tags

Product Introduction

This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Features

1.Key frame uses special PC / ABS plastic.
2.Keys are made by secondary injection molding and words will never fall off, never fade.
3.Conductive rubber is made of natural silicone-corrosion resistance, aging resistance.
4.Circuit board using double-sided PCB (customized), contacts Gold-finger use of gold process, the contact is more reliable.
5. LED color is customized.
6.Buttons and text color could be made as customer requirements.
7.Key frame color is according to customer requirements.
8.With the exception of the telephone, the keyboard can also be designed for other purposes.

Application

VAV

It is mainly for access control system, industrial telephone,vending machine, security system and some other public facilities.

Parameters

Item Technical data
Input Voltage 3.3V/5V
Waterproof Grade IP65
Actuation Force 250g/2.45N(Pressure point)
Rubber Life More than 2 million time per key
Key Travel Distance 0.45mm
Working Temperature -25℃~+65℃
Storage Temperature -40℃~+85℃
Relative Humidity 30%-95%
Atmospheric Pressure 60kpa-106kpa

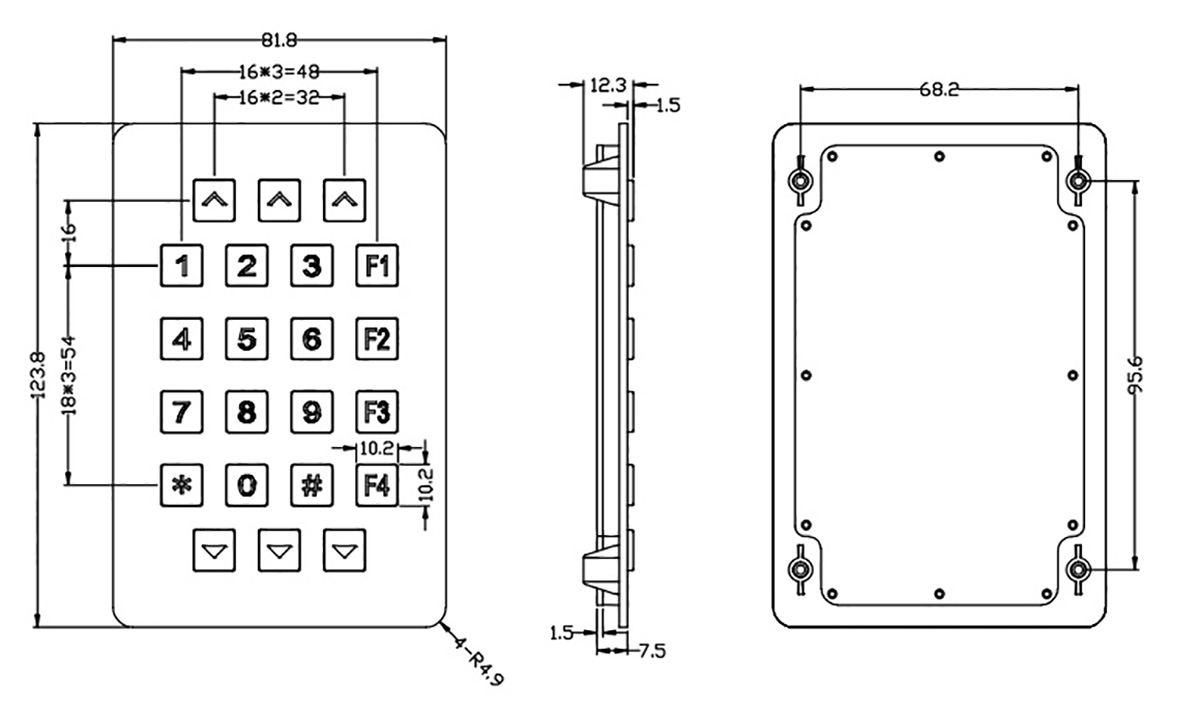

Dimension Drawing

ACVAV

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Available color

AVA

If you have any color request, let us know.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
