3*4 plastic matrix keypad used for industrial telephone B102

Short Description:

The product with the functions of inflaming retarding, corrosion prevention and riot prevention

With our molding workshop, molding injection workshop, sheet metal punching workshop, stainless steel font etching workshop, wire processing workshop, we produce 70% components by ourselves, which guaranteed the quality and delivery time.


Product Detail

Product Tags

Product Introduction

This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Features

1.Key frame using special PC / ABS plastic
2.Keys use flame resistant ABS material with silver painting, seems like metal material.
3.Conductive rubber made of natural silicone,corrosion resistance, Aging resistance
4.Circuit board using double-sided PCB (customized), contacts Gold-finger use of gold process, the contact is more reliable

1.Buttons and text color according to customer requirements
2.Key frame color according to customer requirements
3.With the exception of the telephone, the keyboard can also be designed for other purposes

Application

VAV

It is mainly for access control system, industrial telephone,vending machine, security system and some other public facilities.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 2 million time per key

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60kpa-106kpa

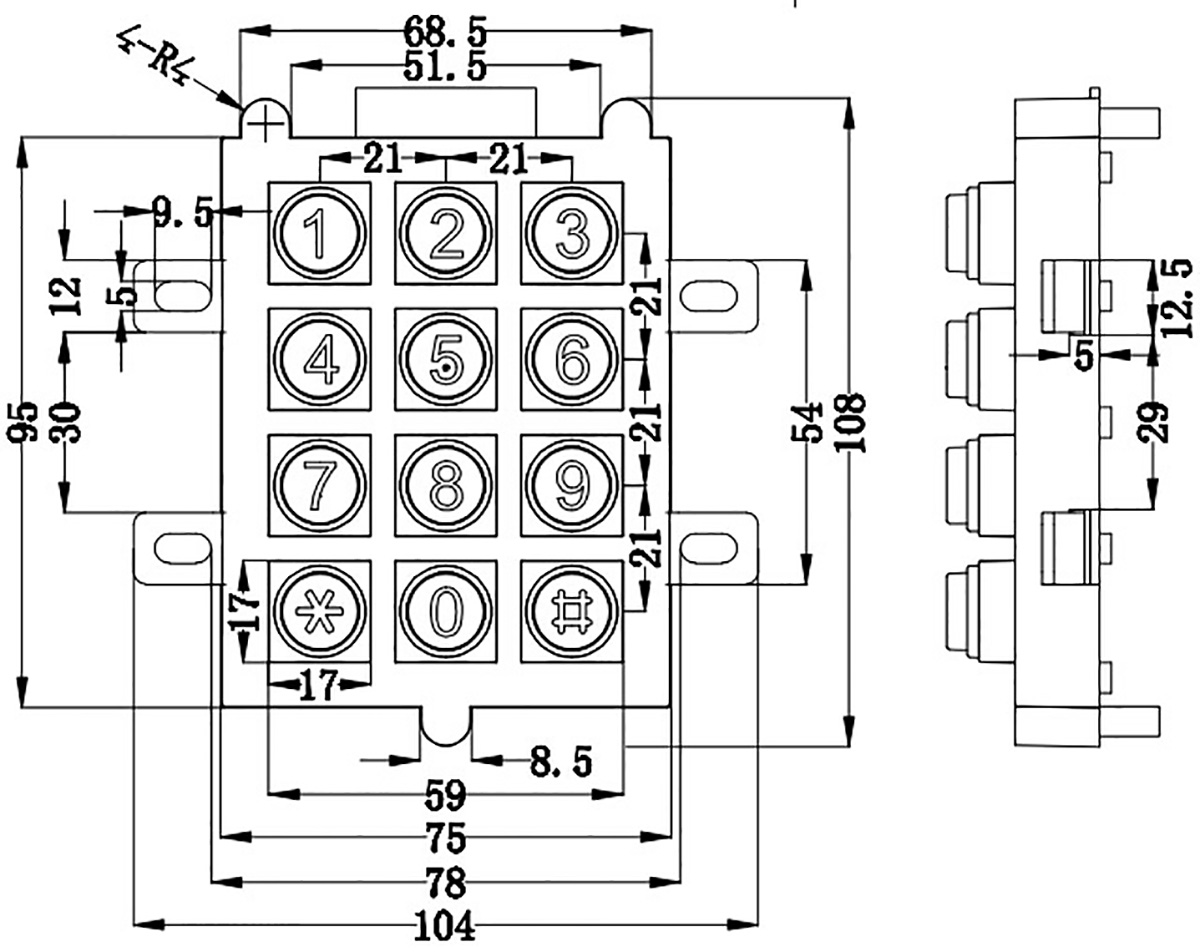

Dimension Drawing

ACVAV

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
