Analog Industrial Waterproof Telephone with loudspeaker for Mining Project- -JWAT302

Short Description:

It is an industrial waterproof telephone which is fully contained within a corrosion resistant cast aluminium alloy waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.It can be connect to loudspeaker,the volume of the loudspeaker can be adjusted freely.

With a professional sales team in industrial telecommunication filed since 2005 Year,We can recommand you the fit one telephones according to your detail application and requirement.Offer you the best price as soon as we know your detail demand.Each waterproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of weatherproof telephone for you.




Product Detail

Product Tags

Product Introduction

When dependability, efficiency, and safety are priorities, a waterproof telephone is built for voice communication in difficult and hazardous environments.like a tunnel, a port, a power plant, a railway, a roadway, an underground, etc.
The body of the telephone it is made of Aluminum alloy, a very strong die-casting material, used with generous thicknesses. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.
Several versions are available, with stainless steel armored cord or spiral, with or without door, with keypad, without keypad and on request with additional function buttons.

Features

1.Die-casting aluminum alloy shell with great mechanical strength and excellent impact resistance.
2.Typical Analog telephone.
3.Heavy-duty handset with a receiver compatible with hearing aids and a noise-cancelling microphone.
4.Protection class to IP67 for weather resistance.
5.Full waterproof zinc alloy keypad with programmable function buttons for fast dial, redial, flash recall, hang up, and mute.
6. Wall-mounted, easy to install.
7.RJ11 screw terminal pair cable is used for connection.
8.Sound level of ringing:over 80dB(A).
9.The available colors as an option.
10. Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant.

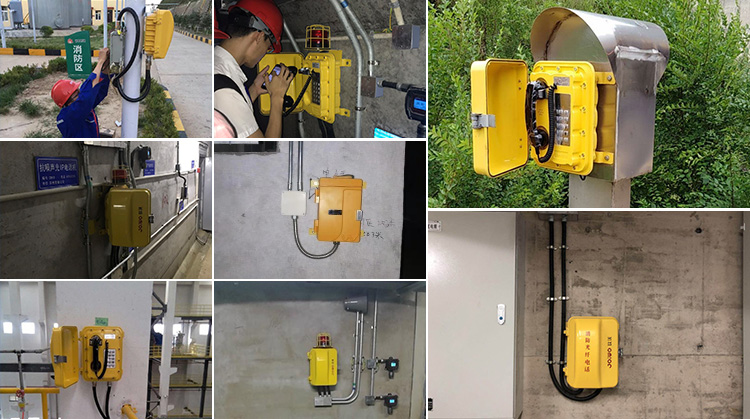

Application

avasv

This weatherproof phone is well-liked for use in tunnels, mines, ships, underground, metro stations, railroad platforms, on highway shoulders, in parking lots, in steel and chemical plants, in power plants, and other heavy-duty industrial settings, among others.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

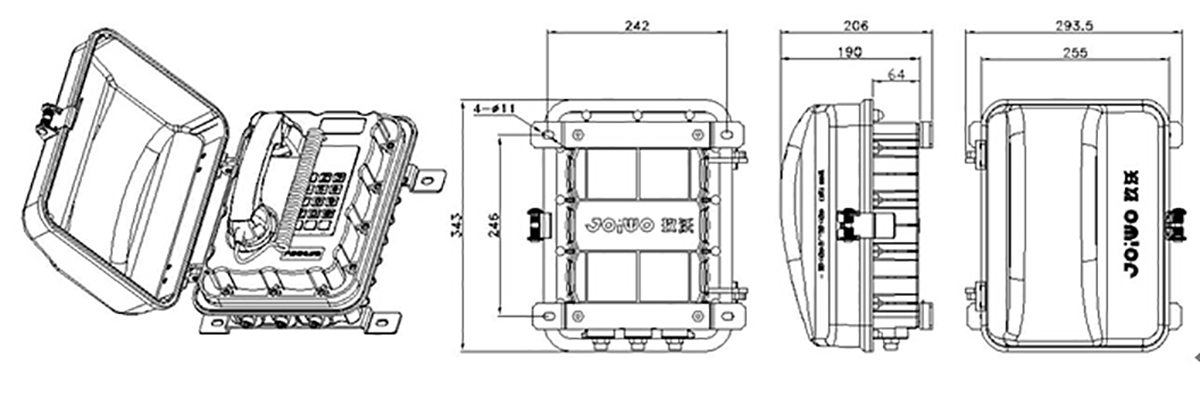

Dimension Drawing

avasv

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
