Auto Dial Hotline Emergency SOS Telephone For Emergency Communication-JWAT205

Short Description:

JWAT205 phone is an emergency phone that can realize off-hook automatic dialing and incoming calls ringing.The phone is generally made of red, and the handle can be reminded with the word “Emergency”, and the color can also be customized

Ningbo Joiwo has been focusing on the field of industrial communication since 2005. The sister company XL focuses on the manufacturing of accessories such as handset, cradle, keypad, etc. It is the world’s top3 enterprise in the field of accessories. Ningbo Joiwo focuses on the field of complete telephone. There are price advantages and quality advantages because of the own parts self made.




Product Detail

Product Tags

Product Introduction

The body of the JWAT205 Public telephone is made of Cold rolled steel（Stainless steel material optional）, a very strong and impact resistant material, can be powder coated with different colors, used with generous thicknesses. The degree of protection is IP54,
We could improve the defend grade from IP54 to IP65 depends on different situation use.
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.

Features

1.Standard Analogue phone. Phone line powered.
2.Robust housing, constructed of cold rolled steel with powder coated
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Magnetic hook switch with reed switch.
5.Hotline phone. When handset is picked up, the phone will dial the hotline number automatically.
6.Hotline phone number can be set and changed if necessary.
7.Optional noise-canceling microphone available.
8.Wall mounted, Simple installation.
9.Weather proof protection IP54.
10.Connection: RJ11 screw terminal pair cable.
11.Multiple color available.
12.Self-made telephone spare part available.
13.CE, FCC, RoHS, ISO9001 compliant.

Application

CAAVAV (1)

This Public Telephone is popular for school, Railway applications, Marine applications, Tunnels, Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume ≥80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Anti-vandalism Level IK09
Installation Wall-mounted

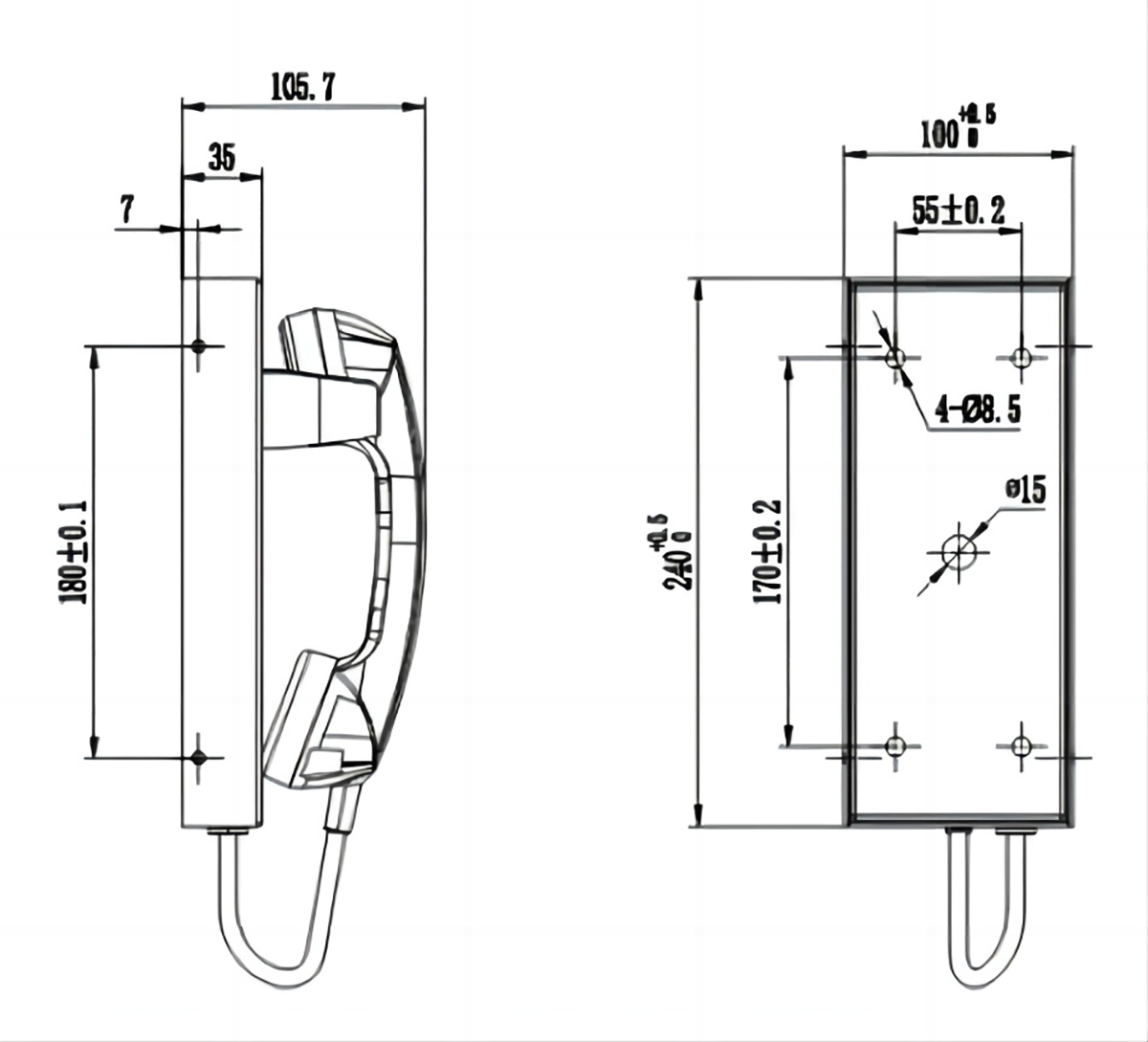

Dimension Drawing

ACASV

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
