Blue LEDs IP65 waterproof keypad for sercurity system B862

Short Description:

It’s 16 keys matrix design keypad, with carbon-on-gold key switch technology. Special round buttons design, pecially designed keyboards meet the high demands with ragrd to design, functionality, longevity and high protection level. LED color available for customer’s choice. Mainly used for sercurity system and other public facilities.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

It is mainly for sercurity system

Features

1. Material: 304# brushed stainless steel.
2. Conductive silicone rubber produced using natural rubber, wear resistance, corrosion resistance, anti-aging
3.Buttons layout could be customized as clients’ request.
4.LED color is customized.

Application

va (2)

Normally used in sercurity system.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 1 million cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

LED color

Customized

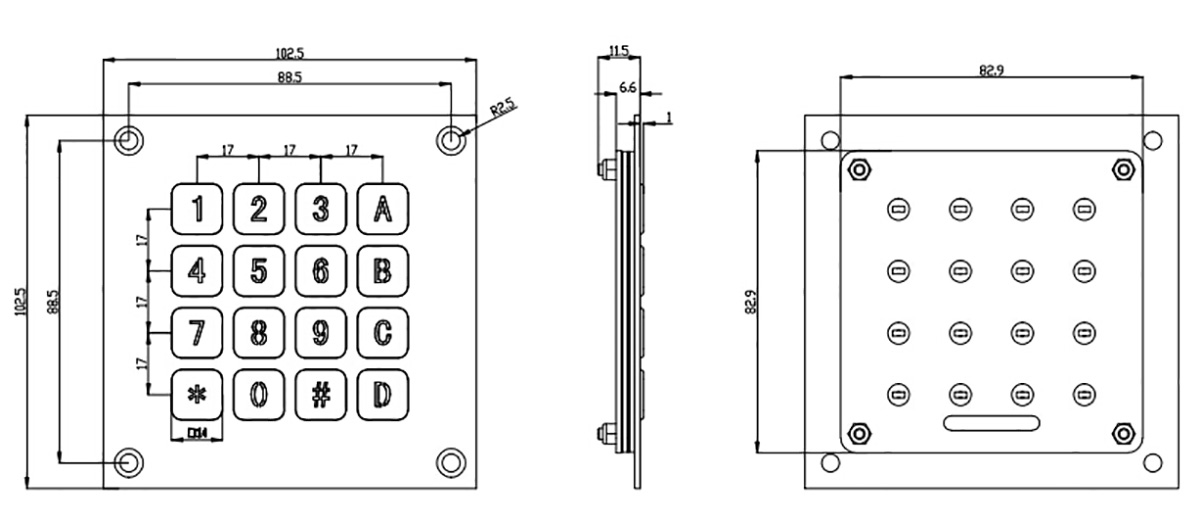

Dimension Drawing

avavv

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Available color

avava

If you have any color request, let us know.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
