metal Analog Voip telephone line powered speed dial public telephone for building-JWAT202 Featured Image
  • metal Analog Voip telephone line powered speed dial public telephone for building-JWAT202
  • metal Analog Voip telephone line powered speed dial public telephone for building-JWAT202
  • metal Analog Voip telephone line powered speed dial public telephone for building-JWAT202

metal Analog Voip telephone line powered speed dial public telephone for building-JWAT202

Short Description:

This is a kind of public telephone with the protection class IP54,if it will be installed at the outdoor and dont have proof , we will strength the waterproof defend to IP65 depends on the customer’s demand.It is a solid case made of cold rolled steel with a powder coated finish for high mechanical strength and impact resistance, a highly reliable product with a long MTBF.The communication Mode could be chosen by analog , Voip ,GSM.

With the production test with many tests like electric acoustical test,FR test,High&Low temperature test,working life test etc.,each waterproof telephone have been waterproof tested and obtain international certificates. Over 85% telephone parts like cradle, keypad, handset are self-made ,we can provide best competitive, quality assurance, after-sale  for you.




Product Detail

Product Tags

Product Introduction

The JWAT202 phone is made of cold-rolled steel, which is anti-corrosion, anti-oxidation, and durable. It have zinc alloy full keyboard with 4 function keys, which can be set to replay, adjust the volume, speed dial and other functions.
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.

Features

1.Standard Analogue phone. Phone line powered.
2.Robust housing, constructed of cold rolled steel with powder coated
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Zinc alloy keypad with 4 speed dial buttons.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Weather proof protection IP54.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12. CE, FCC, RoHS, ISO9001 compliant.

Application

CAAVAV (1)

This Public Telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
 Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume ≥80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Anti-vandalism Level IK09
Installation Wall-mounted

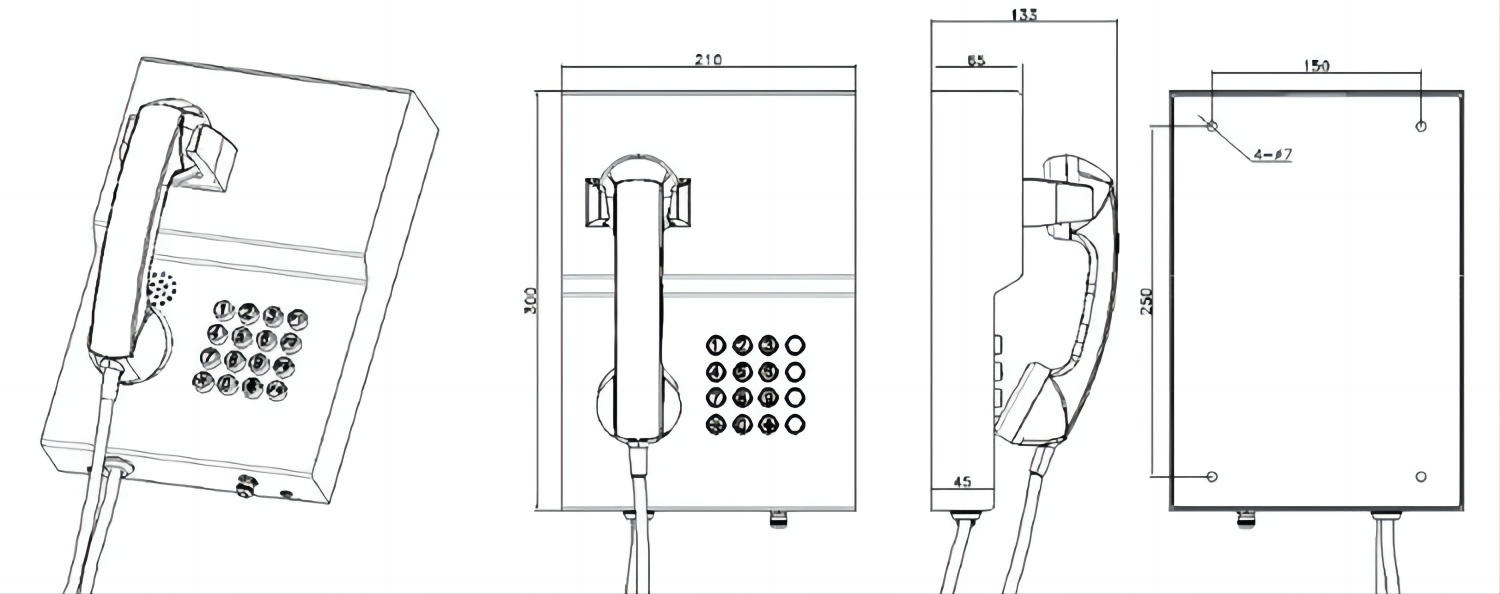

Dimension Drawing

ACAV

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
