cold rolled steel ringdown emergency office airport campus public telephone for school-JWAT213

Short Description:

This is a kind of public telephone with the protection class IP54,it is a solid case made of cold rolled steel with a powder coated finish for high mechanical strength and impact resistance, a highly reliable product with a long MTBF.The communication Mode is Analogue, IP is also available.

With the production test with many tests like electroacoustic test,FR test,High&Low temperature test,working life test etc.,each telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts,we can provide competitive, quality assurance, after-sale protection of waterproof telephone for you.




Product Detail

Product Tags

Product Introduction

Public Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like in tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Cold rolled steel, can be powder coated with different colors,used with generous thicknesses. The degree of protection is IP54,which could improve to IP65 depends on the client’s demand. The telephone have 4 speed dial button which could have a preset number call.
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.

Features

1.Standard Analogue phone. Phone line powered.
2.Robust housing, constructed of cold rolled steel with powder coated
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Zinc alloy keypad with 4 speed dial buttons.
5.The internal circuit of the telephone adopts the international general double-sided integrated circuit, which has the advantages of accurate numbering and clear communication.
6.Magnetic hook switch with reed switch.
7.Optional noise-canceling microphone available.
8.Wall mounted, Simple installation.
9.Weather proof protection IP54.
10.Connection: RJ11 screw terminal pair cable.
11.Multiple color available.
12.Self-made telephone spare part available.
13.CE, FCC, RoHS, ISO9001 compliant.

Application

CAAVAV (1)

This Public Telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume ≥80dB(A)
Corrosion Grade WF1
Ambient Temperature -40~+70℃
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Anti-vandalism Level IK09
Installation Wall-mounted

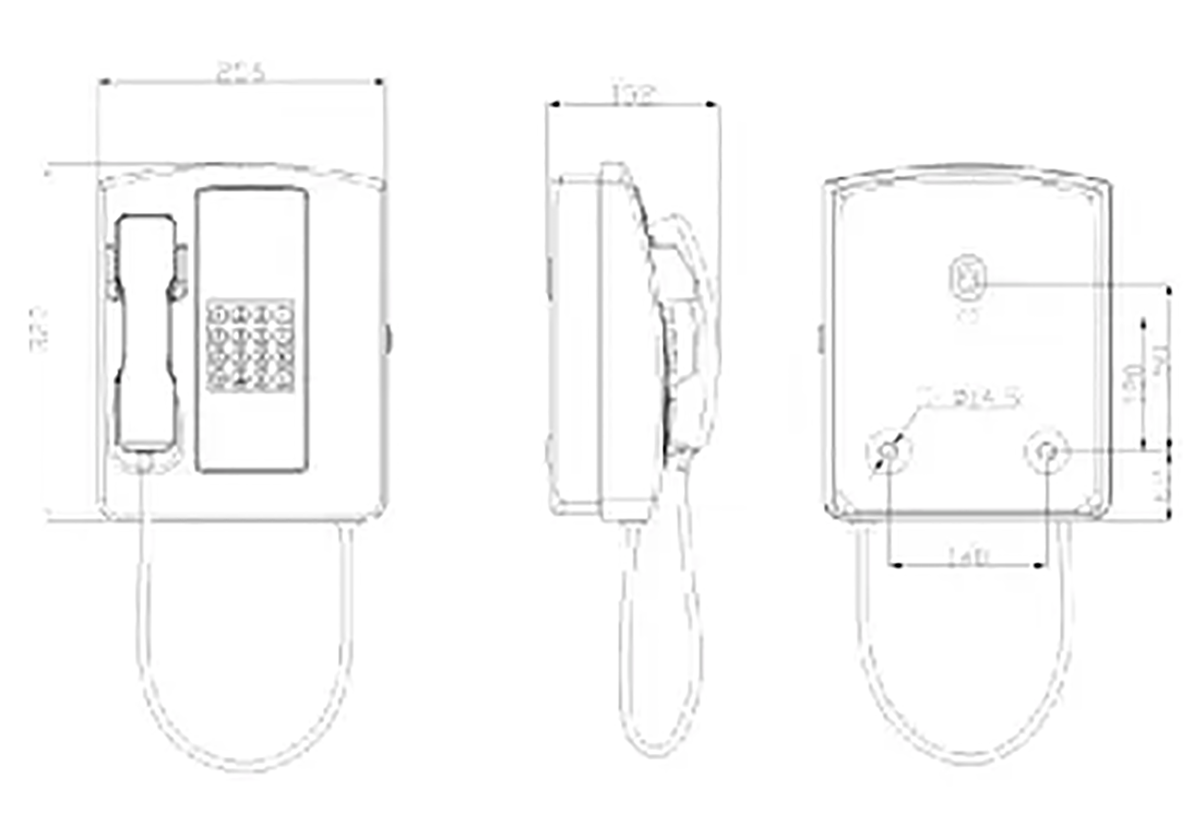

Dimension Drawing

AVAV

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
