Laser cutting metal keypad for access control system B702

Short Description:

It’s 12 Keys vandal-proof IP65 stainless steel matrix keypad.10 number keys, 2 function keys. It’s mainly for fuel dispenser;vending machine,access control system, security system and some other public facilities.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

The special round shape design used for access control system,the keypad has LCD screen and 12 numeric keys that can meet your demands of daily life,stainless steel made is waterproof which is also suitable for outdoor used.There are various interface that can meet the demands of your any devices.

Features

1.keypad has the LCD window
2.The keys layout can be customized
1.Surface treatment of frame and keys: satin-finished or mirror polish.
2.Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.

Application

avav (2)

Keypads are specially designed for public environment applications, such as vending

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

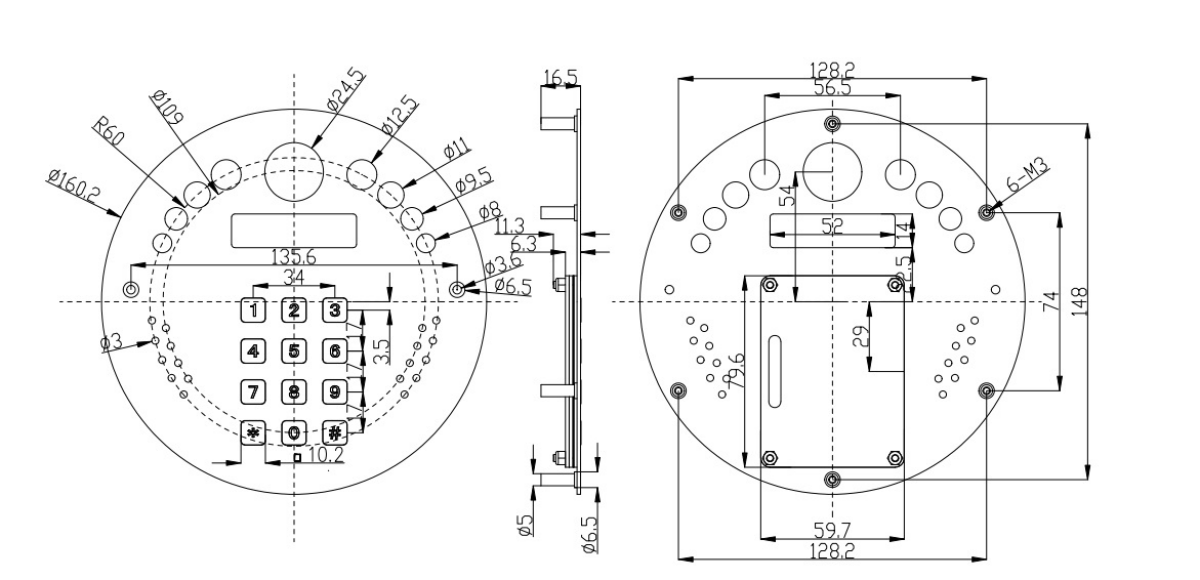

Dimension Drawing

avav (1)

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
