Moisture-Resistant Hotel bank ATM service Hotline Telephone for safety use-JWAT206

Short Description:

The JWAT206 phone is made of carbon steel, which is durable and has a waterproof groove on the top. It is suitable for indoor use. If you want to use it outdoors without shelter and withstand the sun and rain, we can also meet your requirements. We will modify the structure and materials of the phone to achieve the waterproof level of IP65-66.

Ningbo Joiwo has the most professional team, flexible design concept, and experienced R&D team, which can undertake various customized projects.

We have our own factories with self-made telephone parts like cradle, keypad, handset，etc ,we can provide competitive, quality assurance, after-sale protection of waterproof telephone for you.




Product Detail

Product Tags

Product Introduction

This JWAT206 telephone is made of Cold rolled steel, high impact resistance.The telephone will dial as soon as the handset lifted-up and press the SOS button.
Analog tye or Voip type could be chosen.
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.

Features

1.Robust housing, constructed of cold rolled steel with powder coated.
2.There is a prominent shelter at the top of the phone to avoid water emerging.
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Magnetic hook switch with reed switch.
5.Hotline phone. When handset is picked up, and press the button, the phone will dial the hotline number automatically.
6.Optional noise-canceling microphone available.
7.Wall mounted, Simple installation.
8.Weather proof protection IP65.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12.CE, FCC, RoHS, ISO9001 compliant..

Application

CAAVAV (1)

This Public Telephone is popular for  kiosk, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Parameters

Item Technical data
  Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume ≥80dB(A)
Corrosion Grade WF2
Ambient Temperature -30～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 1-Ø10
Installation Wall-mounted
  Voltage DC48V

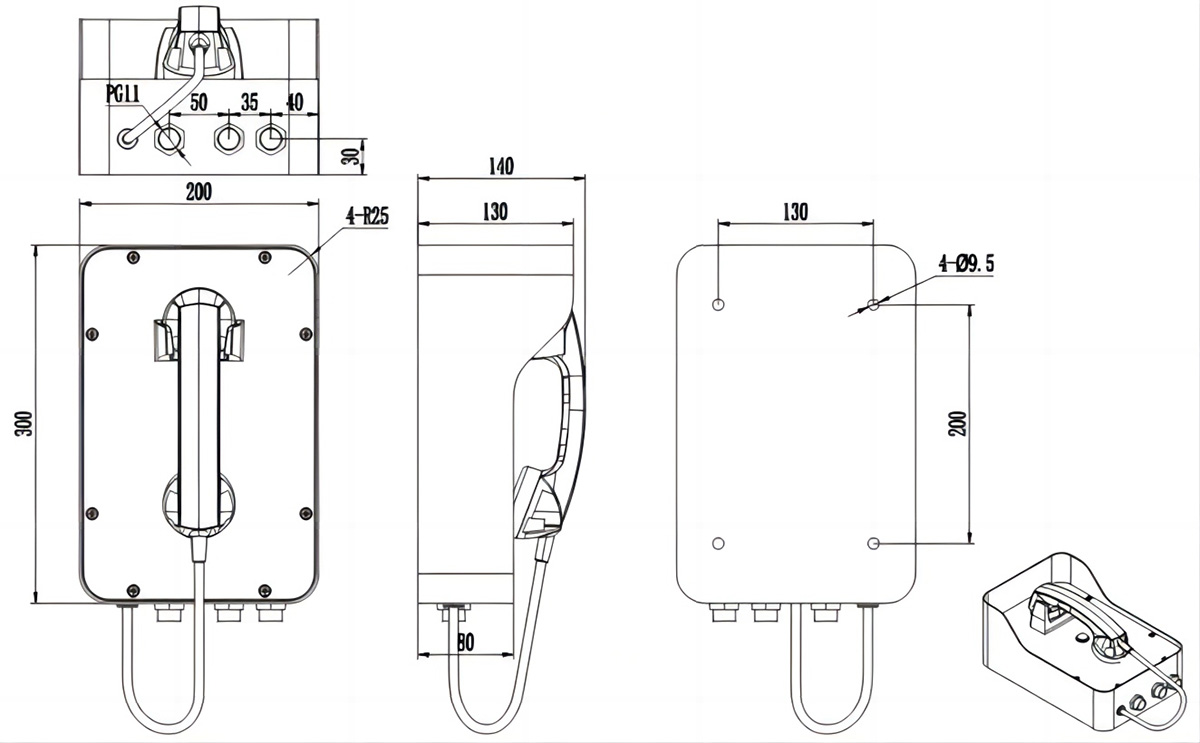

Dimension Drawing

VAV

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
