Full Big Size Jail hotline Phone Handset Anti-Corrosive Prison Telephone-JWAT149

Short Description:

Joiwo’s Auto Dial Vandal Proof, Armored Hotline Visitation No-Dial Phone ,is offer direct efficient communication for prison visitation areas, dormitories,correctional Institution,control rooms, hospitals,police stations, ATM machines, airports, stadiums, gate and entryways.

With a professional R&D team in industrial public jail telecommunication filed since 2005 Year, Each vandal Resistant Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the Jail communication.


Product Detail

Product Tags

Product Introduction

JWAT149 Hotline Auto Dial telephone is designed to dial a preset number when the handset is lifted .
This model is constructed of rugged stainless steel or cold rolled steel,instruction or advertising window which could make a note something to remind users. Corrosion resistance ,oxidation resistance,strong impact resistant, with high tensile handset which could afford 100kg force strength.Equipped with tamper resistant security screws for added strength and durability.
The telephone will dial as soon as the handset lifted-up.
Ningbo Joiwo, your preferred supplier, customized development, experienced team, leader in the field of industrial communication.

Features

1.Standard Analogue phone. Phone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Automatic dialing.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Connection: RJ11 screw terminal pair cable.
9.Multiple color available.
10.Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant

Application

ascasc (1)

This Scheduling hotline telephone is often used in customer service, airport, railway station scheduling, etc. Hotline telephone using core technology has the function of lift machine automatic dial-up dial directly connected.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Anti-vandalism Level IK10
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Installation Wall-mounted

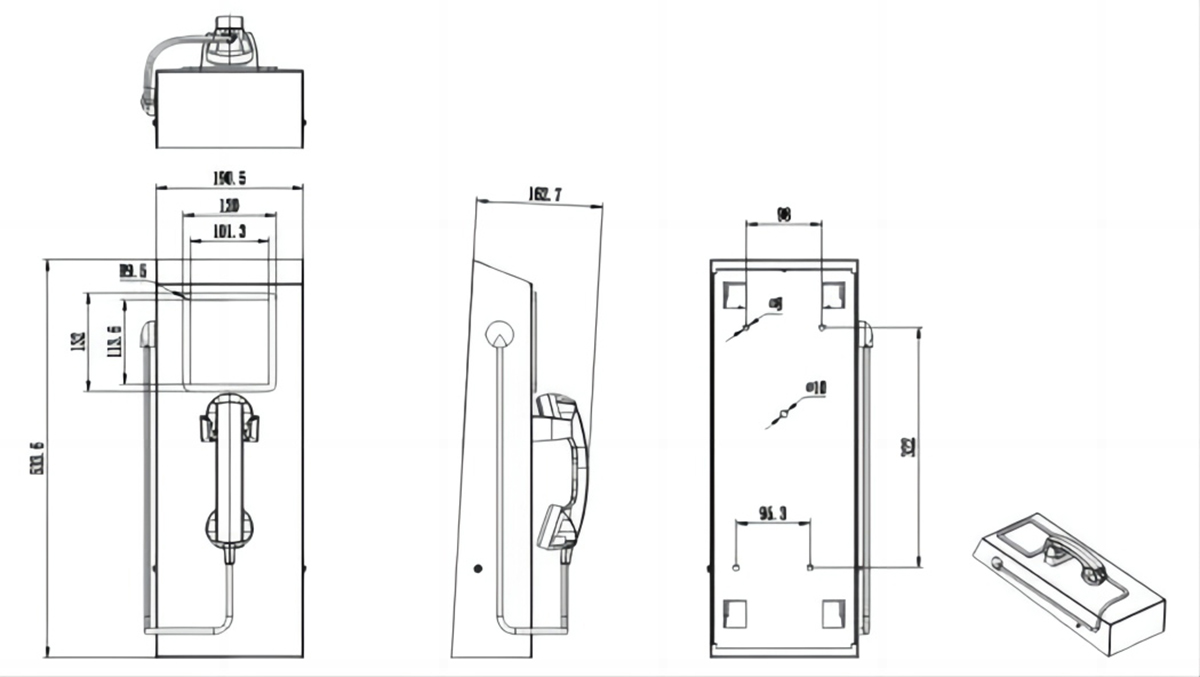

Dimension Drawing

svav

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
