Hot line Automatic dial Vandal Proof Public Telephone for Correctional institute-JWAT135

Short Description:

Joiwo’s Auto Dial Vandal Proof, Armored Hotline Visitation No-Dial Phone ,is offer direct efficient communication for prison visitation areas, dormitories,correctional Institution,control rooms, hospitals,police stations, ATM machines, airports, stadiums, gate and entryways.

With a professional R&D team in industrial public jail telecommunication filed since 2005 Year, Each vandal Resistant Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the Jail communication.




Product Detail

Product Tags

Product Introduction

Joiwo’s Auto Dial Vandal Proof, Armored Hotline Visitation No-Dial Phone ,is providing direct dual communication for prison visitation areas, dormitories,correctional Institution,control rooms, hospitals,police stations, ATM machines, airports, stadiums, gate and entryways.
We are professional team with R&D engineer in jail telecommunication filed From 2005 Year and have passed ISO9001,FCC,CE,Rohs certificate.
Joiwo is your First-choice for jail system communication.

Features

1.Standard Analogue phone. Phone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Automatic dialing.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Connection: RJ11 screw terminal pair cable.
9.Multiple color available.
10.Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant

Application

ascasc (1)

This SUS304 stainless steel telephone could use for such as in jails, correctional institute, hospitals, dormitories, airports, control rooms, sally ports, schools, campus, health center, Drug Addiction Treatment, gate and entryways, PREA phone, or waiting rooms etc.

Parameters

Item

Technical data

Power Supply

Telephone Line Powered

Voltage

24--65 VDC

Standby Work Current

≤1mA

Frequency Response

250～3000 Hz

Ringer Volume

>85dB(A)

Corrosion Grade

WF1

Ambient Temperature

-40～+70℃

Anti-vandalism Level

IK10

Atmospheric Pressure

80～110KPa

Relative Humidity

≤95%

Installation

Wall-mounted

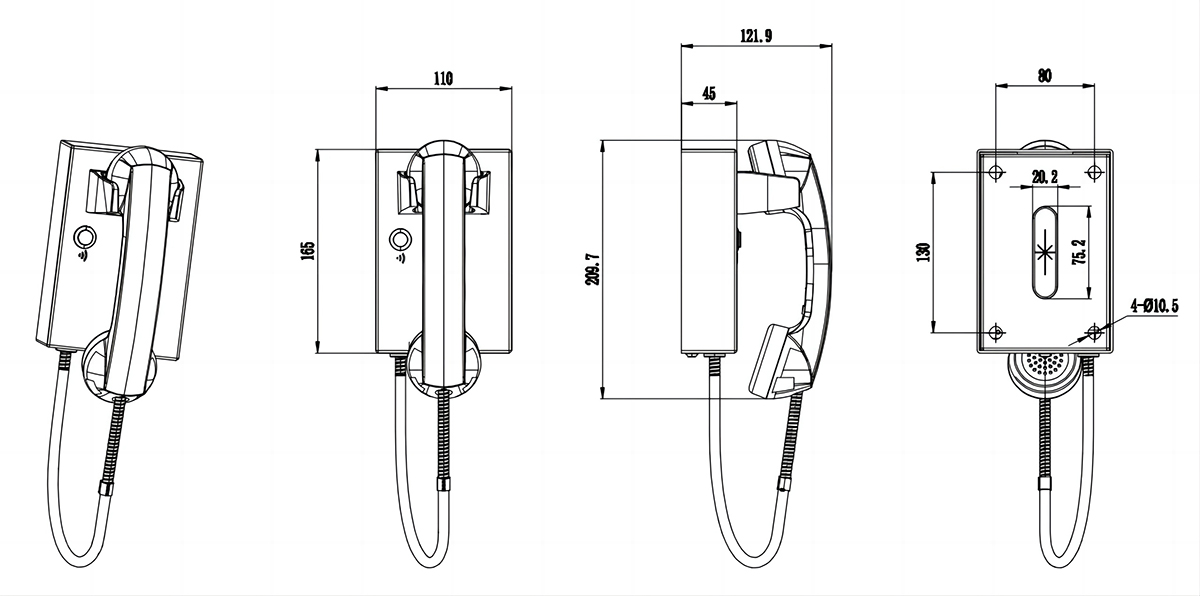

Dimension Drawing

scava

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
