Industrial cold rolled steel outdoor IP66 weatherproof telephone – JWAT316P

Short Description:

We are a manufacturer of industrial  waterproof telephones. We will provide the latest and best industrial waterproof telephones, with voip and analog versions available. We can also customize the telephone according to your demands. You can use our weatherproof  telephones in industrial area, outdoor, nuclear power,railway, tunnel, dock,marine and chemical industries.




Product Detail

Product Tags

Product Introduction

The housing of JWAT316P telephone is made of rolled steel, which has good impact strength and protection performance. The high temperature powder on the surface is not electrostatically sprayed, which can prevent static electricity. The circuit board adopts the concept of integrated design, and integrates the basic communication circuit and noise cutting circuit in one machine. And select foreign well-known brand components. After high and low temperature testing, screening, procurement and production, the circuit has undergone strict protection treatment, so that the environmental adaptability of the whole machine has been further improved.

Features

1. Robust housing, constructed of cold rolled steel with powder coated.

2. Standard Analogue phone.

3. Vandal resistant handset with armored cord and grommet provides added security for handset cord.

4. Weather proof Protection class to IP66.

5. Waterproof zinc alloy Keypad.

6.Wall mounted, Simple installation.

7.Connection: RJ11 screw terminal pair cable.

8.Sound level of ringing:over 85dB(A).

9.The available colors as an option.

10.Self-made telephone spare part like keypad,cradle, handset,etc is available.

11.CE, FCC, RoHS, ISO9001 compliant.





Application

case

This weatherproof telephone is very popular for subways, highways, power plants, petrol stations, docks, steel companies and other environments that have special requirements for moisture, fire, noise, dust  and frost.

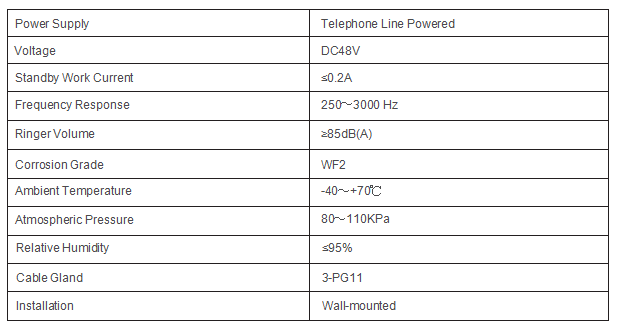

Parameters

316P

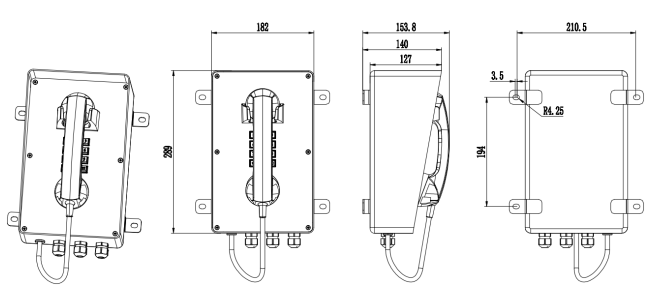

Dimension Drawing

316P-1

Available Connector

color

Test machine

pp
