Industrial Voip Tunnel Emergency SOS Telephone Intercom For pipe corridors-JWAT415

Short Description:

The weatherproof Intercom is rugged , durable,weatherproof , dustproof and moisture-resistant. Special sealing design can ensure complete waterproof defend grade up to IP66.
With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Intercom Telephone have been passed the FCC,CE international certificates. Having the highest quality, certification and ensures compatibility with industry-standard-based IP network solutions .
Your first-choice provider of innovative communication solutions and competitive products  for the industrial pipe corridors communication.




Product Detail

Product Tags

Product Introduction

The weatherproof Intercom is rugged , durable,weatherproof , dustproof and moisture-resistant. Special sealing design can ensure complete waterproof defend grade up to IP66.
With a professional R&D team in industrial telecommunication solution filed since 2005 Year, Each Intercom Telephone have been passed the FCC,CE international certificates. Having the highest quality, certification and ensures compatibility with industry-standard-based IP network solutions .
Your first-choice provider of innovative communication solutions and competitive products  for the industrial pipe corridors communication.

Features

1.Standard Analogue phone. SIP version available.
2.Robust housing, constructed of Cold rolled steel material.
3. All openings and edges are cut by non-marking laser cutting, and the bending machine is used for bending;
4. The surface is waterproof and dustproof, with a built-in waterproof speaker;
5. The built-in circuit of the phone has strong anti-interference ability, and the call sound quality is stable and clear.
6.All weather protection IP66.
7. One button for emergency call.
8.Hands-free Operation.
9.Wall mounted.
10.Connection: RJ11 screw terminal pair cable.
11.Self-made telephone spare part available.
12.CE, FCC, RoHS, ISO9001 compliant.

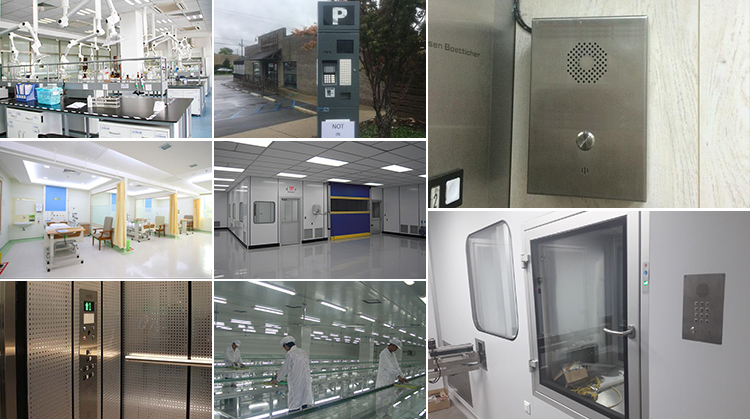

Application

avavba (1)

The telephone is a high-tech product that combines the actual needs of expressway sites. It is widely used in expressways, tunnels, and pipe corridors,etc.

Parameters

Item Technical data
Voltage DC12V
Standby Work Current ≤1mA
Frequency Response 300-3400 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Atmospheric Pressure 80~110KPa
Weight 8kg
Relative Humidity ≤95%
Installation Wall mounted

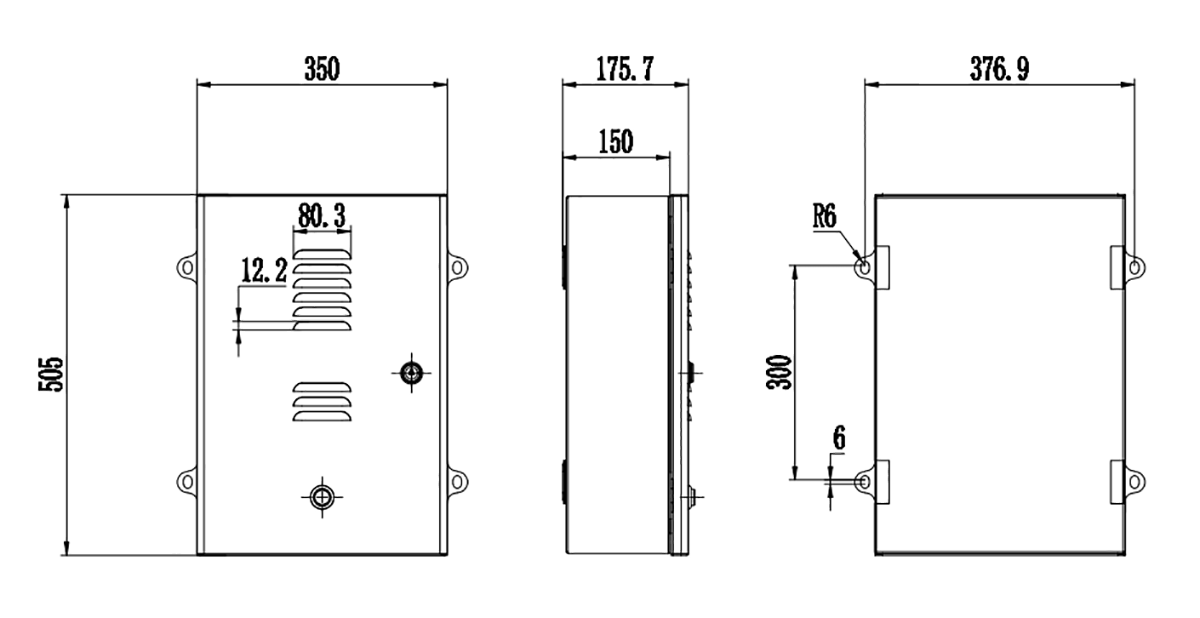

Dimension Drawing

avav

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
