Industrial Waterproof Telephone with loudspeaker and flashlight for Mining Project-JWAT303

Short Description:

It is an industrial waterproof telephone which is fully contained within a corrosion resistant cast aluminium alloy waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.It can be connected to loudspeaker and flashlight.When called, the loudspeaker sounds and the alarm light turns on at the same time, so it is more intuitive to know which phone has an incoming call

With a professional R&D team in industrial telecommunication filed since 2005 Year, we support customized design service according to the detail requirement for project.Each weatherproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of weatherproof telephone for you.




Product Detail

Product Tags

Product Introduction

For voice communication in tough and hazardous environments where dependability, efficiency, and safety are of the utmost significance, waterproof telephones were developed.such as a dock, power plant, railway, roadway, or tunnel.
The body of the telephone it is made of Aluminum alloy, a very strong die-casting material, used with generous thicknesses. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.
Several versions are available, with stainless steel armored cord or spiral, with or without door, with keypad, without keypad and on request with additional function buttons.

Features

1.Aluminum alloy die-casting shell, good impact resistance and high mechanical strength.
2. A regular analog phone.
3.A heavy-duty handset featuring a noise-cancelling microphone and a receiver compatible with hearing aids.
4. Weatherproof IP67 protection class.
5.A full waterproof keypad made of zinc alloy has function keys that may be set up as a speed dial, redial, flash recall, hang up, or mute button.
6. Wall-mounted, easy to install.
RJ11 screw terminal pair cable is used for connection.
8.Ringing sound volume: over 80 dB(A).
9. The optional hues that are offered.
10. There are spare parts for homemade phones available.
11. Compliant with CE, FCC, RoHS, and ISO9001.

Application

avasv

This Waterproof Telephone Is Very Popular For Mining,Tunnels, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

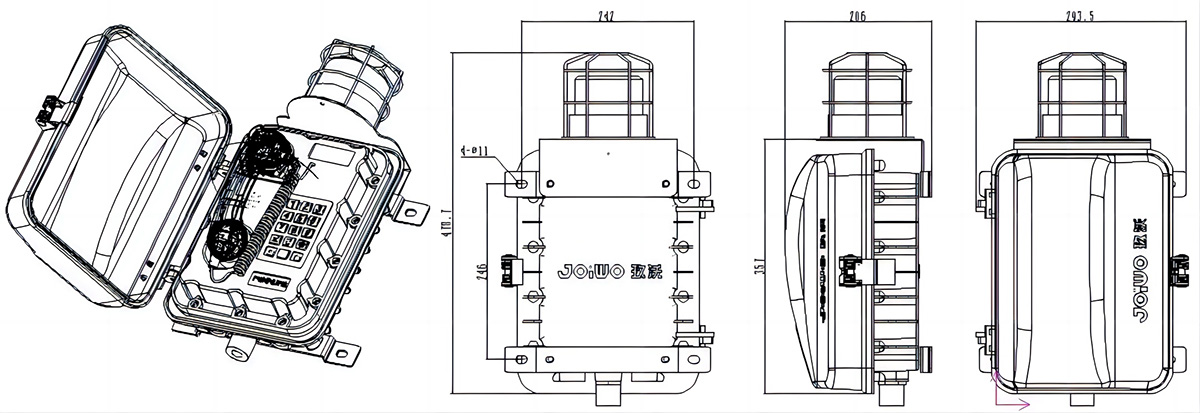

Dimension Drawing

avav

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
