Industrial Weatherproof IP Telephone for Construction Communications-JWAT920

Short Description:

It is an industrial weatherproof phone with a solid case made of cold rolled steel with a powder coated finish for high mechanical strength and impact resistance, a highly reliable product with a long MTBF.

Since 2005, we have a professional sales team in the field of industrial telecommunications. We recommend suitable industrial phones for customers according to detailed application requirements and detailed needs. OEM customization service welcomes your inquiry 24 hours a day, good delivery time, quality and after-sales service is your best choice




Product Detail

Product Tags

Product Introduction

Weatherproof Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like Transpotation Communications in tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Cold rolled steel, a very strong material, can be powder coated with diffirent colors,used with generous thicknesses. The degree of protection is IP67,
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.

Features

1.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
3.Vandal Resistant zinc alloy keypad.
4.Support SIP 2.0（RFC3261）,RFC Protocol.
5.Audio Codes:G.729、G.723、G.711、G.722、G.726,etc.
6.Supports full duplex.
7.Weather proof Protection class to IP66.
8.Wall mounted, Simple installation.
9.The available colors as an option.
10.Self-made telephone spare part available.
11.CE, FCC, RoHS, ISO9001 compliant.

Application

bvswbsb

This Weatherproof Telephone Is Very Popular For Subway,Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Protocol SIP2.0(RFC-3261)
Audio Amplifier 2.4W
Handsfree Speaker 2W
Volume Control Adjustable
Support RTP
Codec G.729、G.723、G.711、G.722、G.726
Power Supply 12V (±15%) / 1A DC or PoE
LAN 10/100BASE-TX s Auto-MDIX, RJ-45
WAN 10/100BASE-TX s Auto-MDIX, RJ-45
Weight 3.8KG
Installation Wall-mounted

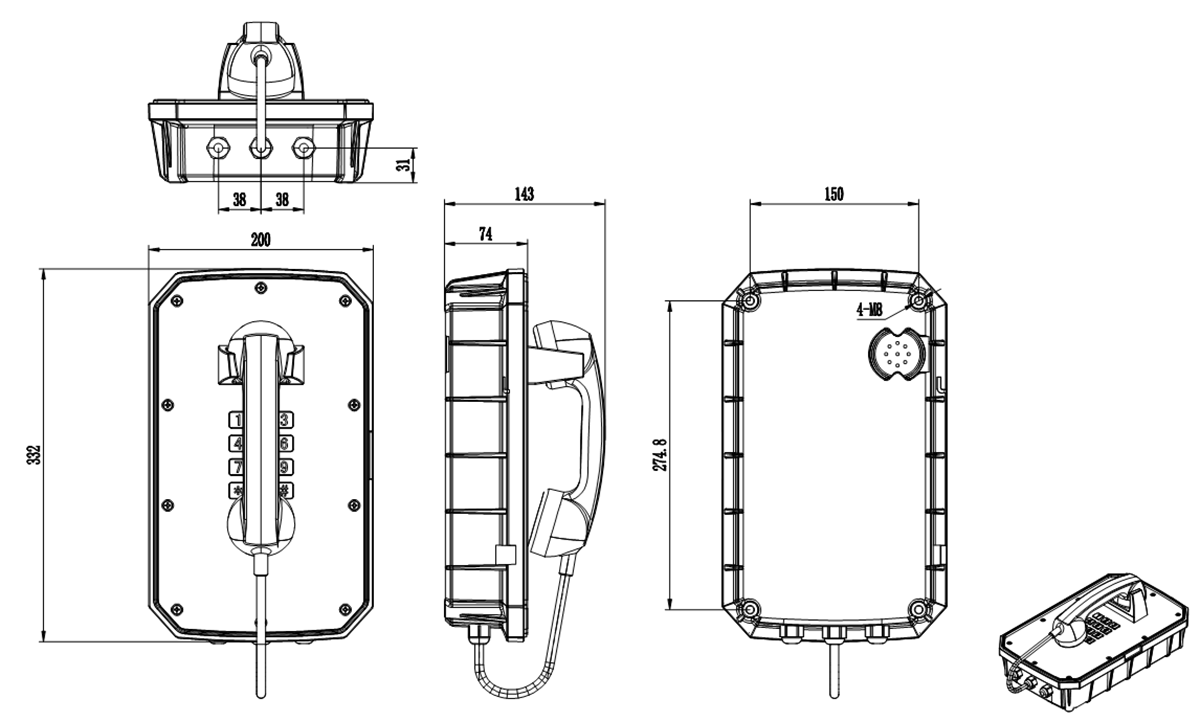

Dimension Drawing

vavbab

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
