Industrial Weatherproof IP Telephone for Transpotation Communications-JWAT907

Short Description:

It is an industrial weatherproof phone with a solid case made of cold rolled steel with a powder coated finish for high mechanical strength and impact resistance, a highly reliable product with a long MTBF. Dial with the number keys to call any terminal, and you can also call the zone broadcast with one key.

Since 2005, we have a professional sales team in the field of industrial telecommunications. We recommend suitable industrial phones for customers according to detailed application requirements and detailed needs. OEM customization service welcomes your inquiry 24 hours a day, good delivery time, quality and after-sales service is your best choice


Product Detail

Product Tags

Product Introduction

Weatherproof Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like Transpotation Communications in tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Cold rolled steel, a very strong material, can be powder coated with diffirent colors,used with generous thicknesses. The degree of protection is IP67,
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.

Features

1.Can directly access Ethernet, cross network segment and cross routing
2.One-touch dialing to achieve full duplex intercom
3.Broadcasting to the area permitted by authorityMagnetic hook switch with reed switch.
4.The patented design of the phone casing is waterproof and dustproof, no waterproof cover is needed, and it is beautiful and practical.
5.The internal circuit of the telephone adopts the international universal double-sided integrated circuit, which has the advantages of accurate number sending, clear call and stable work.
6.Carbon steel surface is sprayed with plastic, with high mechanical strength and strong impact resistance.
7.Hotline Emergency Phone.
8.Cradles, handsets , and keypads are all produced by our company. Quality control is strictly controlled, and the after-sales response is fast.
9. The available colors as an option.
10.Self-made telephone spare part available.
11.CE, FCC, RoHS, ISO9001 compliant

Application

avasv

This Weatherproof Telephone Is Very Popular For Subway,Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Voltage DC12V or POE or AC100-230V
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume ≥85dB
Corrosion Grade WF1
Ambient Temperature -40~+70℃
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Cable Gland 2-PG11
Weight 5kg
Installation Wall-mounted

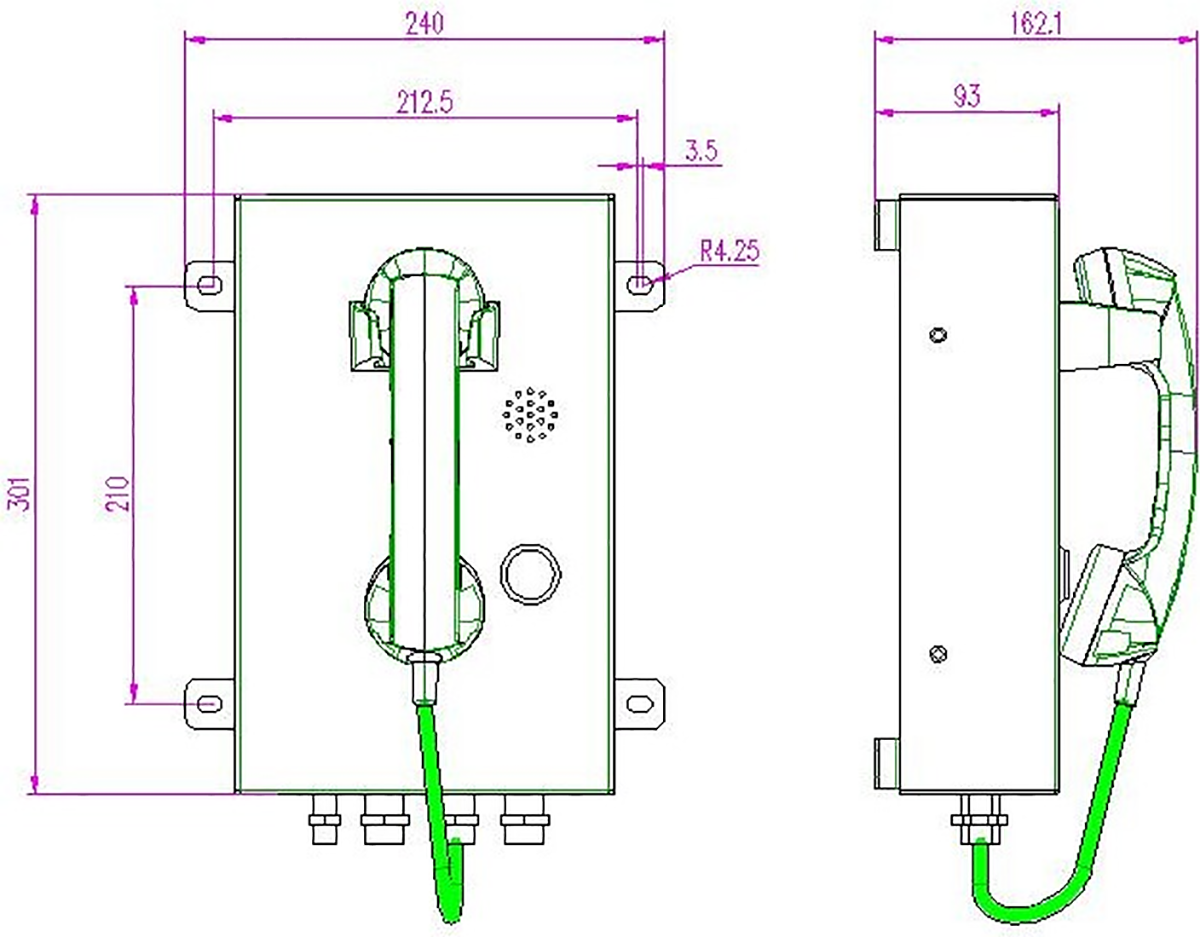

Dimension Drawing

cvasvav

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
