Industrial Weatherproof IP Telephone with flashlight for Maritime Communications-JWAT922

Short Description:

It is an industrial weatherproof phone with a solid case made of cold rolled steel with a powder coated finish for high mechanical strength and impact resistance, a highly reliable product with a long MTBF.It is connected to the flashlight.When called, the alarm light turns on at the same time, so it is more intuitive to know which phone has an incoming call,and serve as a warning.

Since 2005, we have a professional sales team in the field of industrial telecommunications. We recommend suitable industrial phones for customers according to detailed application requirements and detailed needs. OEM customization service welcomes your inquiry 24 hours a day, good delivery time, quality and after-sales service is your best choice




Product Detail

Product Tags

Product Introduction

Weatherproof Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like Transpotation Communications in tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Cold rolled steel, a very strong material, can be powder coated with diffirent colors,used with generous thicknesses. The degree of protection is IP67,
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.

Features

1. Vandal proof rolled steel material.
2. Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
3. Vandal resistant zinc alloy keypad.
4. With LED lamp fixed on the top, When there is a incoming call, the lamp will flashing.
5. The sensitivity of the speaker and microphone can be adjusted.
6. Support one-button direct call dispatcher function; 2 function keys can be set arbitrarily.
7. Audio Codes:G.729、G.723、G.711、G.722、G.726,etc.
8. Support SIP 2.0（RFC3261）,RFC Protocol.
9. Wall mounted, Simple installation.
10.The available colors as an option.
11.Self-made telephone spare part available.
12.CE, FCC, RoHS, ISO9001 compliant.

Application

avasv

This Weatherproof Telephone Is Very Popular For Subway,Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Protocol SIP2.0(RFC-3261)
Audio Amplifier 2.4W
Volume Control Adjustable
Support RTP
Codec G.729、G.723、G.711、G.722、G.726
Power Supply AC220V or PoE
LAN 10/100BASE-TX s Auto-MDIX, RJ-45
WAN 10/100BASE-TX s Auto-MDIX, RJ-45
Weight 7KG
Installation Wall-mounted
Cable Gland 2-PG11

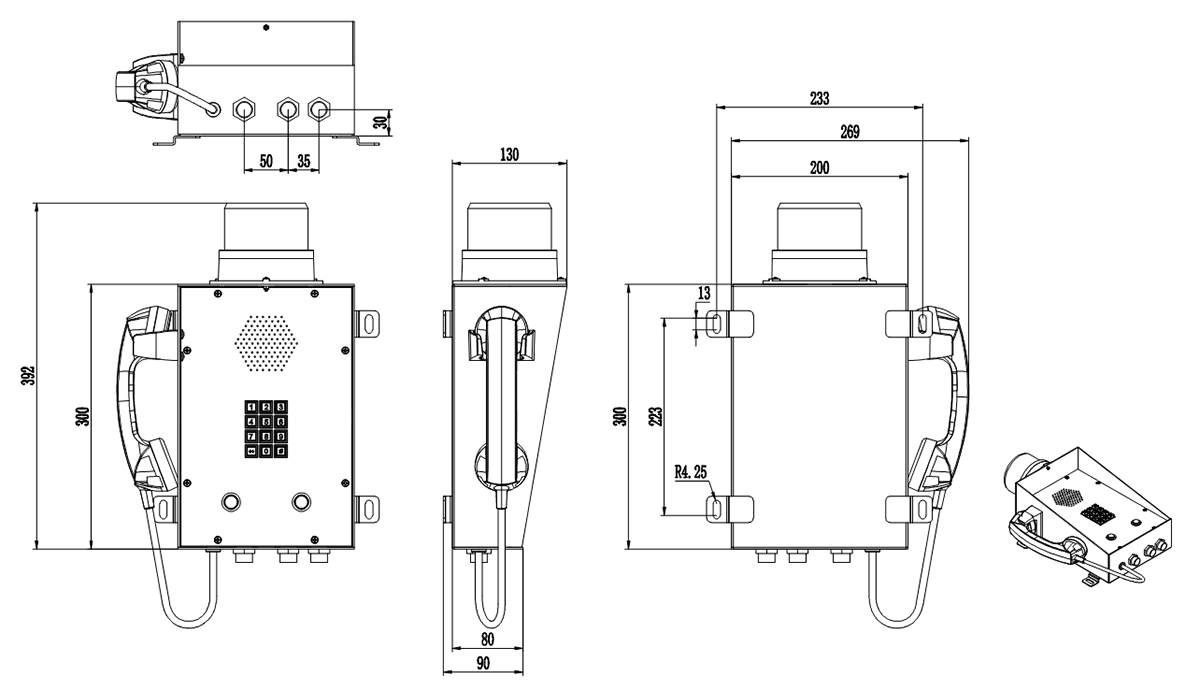

Dimension Drawing

acasva

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
