Industrial Weatherproof Telephone With beacon light and loudspeaker for Tunnel Project -JWAT307

Short Description:

A corrosion-resistant cast aluminum alloy waterproof casing completely encloses the industrial weatherproof phone.With a door offering total defense against dust and moisture infiltration, a highly dependable product with a long MTBF is produced.It has connections for a beacon light and a loudspeaker.It is easier to tell which phone has an incoming call because the loudspeaker and alarm light both sound when the call comes in.

With a professional R&D team in industrial telecommunication filed since 2005 Year, Each weatherproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts,we can provide competitive, quality assurance, after-sale protection of weatherproof telephone for you.




Product Detail

Product Tags

Product Introduction

Aluminum alloy, a particularly sturdy die-casting material, is employed with substantial thicknesses to create the phone's body. Even with the door open, IP67 protection is provided. The door helps keep the inside components, including the handset and keyboard, clean.
There are several variations available, including ones with or without a door, a keypad with or without a keypad, and, upon request, extra function buttons.

Features

1.Aluminum alloy die-casting shell, good impact resistance and high mechanical strength.
2.Standard Analogue phone.
3.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
4.Weather proof Protection class to IP67.
5.Waterproof zinc alloy full Keypad with function keys which can be programmed as speed dial/redial/flash recall/hang up/mute button.
6.Wall mounted, Simple installation.
7.Connection: RJ11 screw terminal pair cable.
8.Sound level of ringing:over 80dB(A).
9.The available colors as an option.
10. Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant.

Application

bvswbsb

This Weatherproof Telephone Is Very Popular For Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250~3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40~+60℃
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

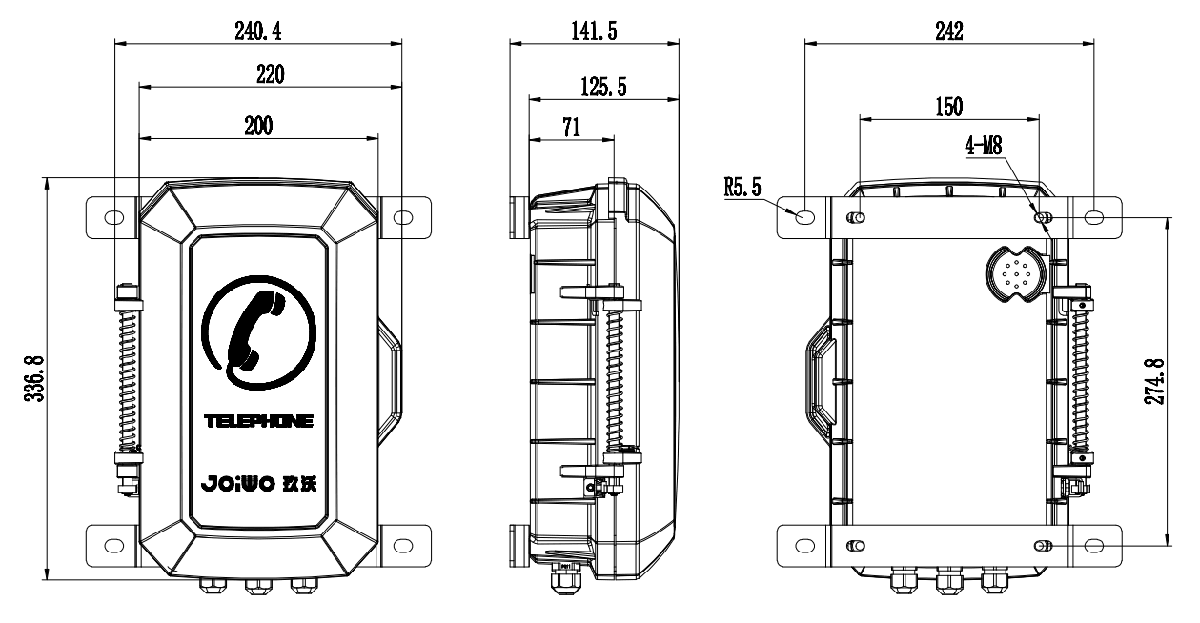

Dimension Drawing

avab

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
