Industrial Weatherproof Telephone with Warning Light for Railway Project-JWAT310

Short Description:

It is an industrial weatherproof telephone with warning light which is robust housing, constructed of cold rolled steel with powder coated, resulting in a highly reliable product with a long MTBF.With the warning light on the telephone,When there is a incoming call, the lamp will flashing.

With a professional R&D team in industrial telecommunication filed since 2005 Year, Each weatherproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of weatherproof telephone for you.




Product Detail

Product Tags

Product Introduction

Weatherproof Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Cold rolled steel, a very strong material, can be powder coated with diffirent colors,used with generous thicknesses. The degree of protection is IP67,
Several versions are available, with stainless steel armored cord or spiral, with keypad, without keypad and on request with additional function buttons.

Features

1.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2.Standard Analogue phone.
3.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
4.Weather proof Protection class to IP67.
5.Waterproof zinc alloy full Keypad with function keys which can be programmed as speed dial/redial/flash recall/hang up/mute button.
6.Wall mounted, Simple installation.
7.Connection: RJ11 screw terminal pair cable.
8.Sound level of ringing:over 80dB(A).
9.The available colors as an option.
10. Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant.

Application

bvswbsb

This Weatherproof Telephone Is Very Popular For Subway,Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

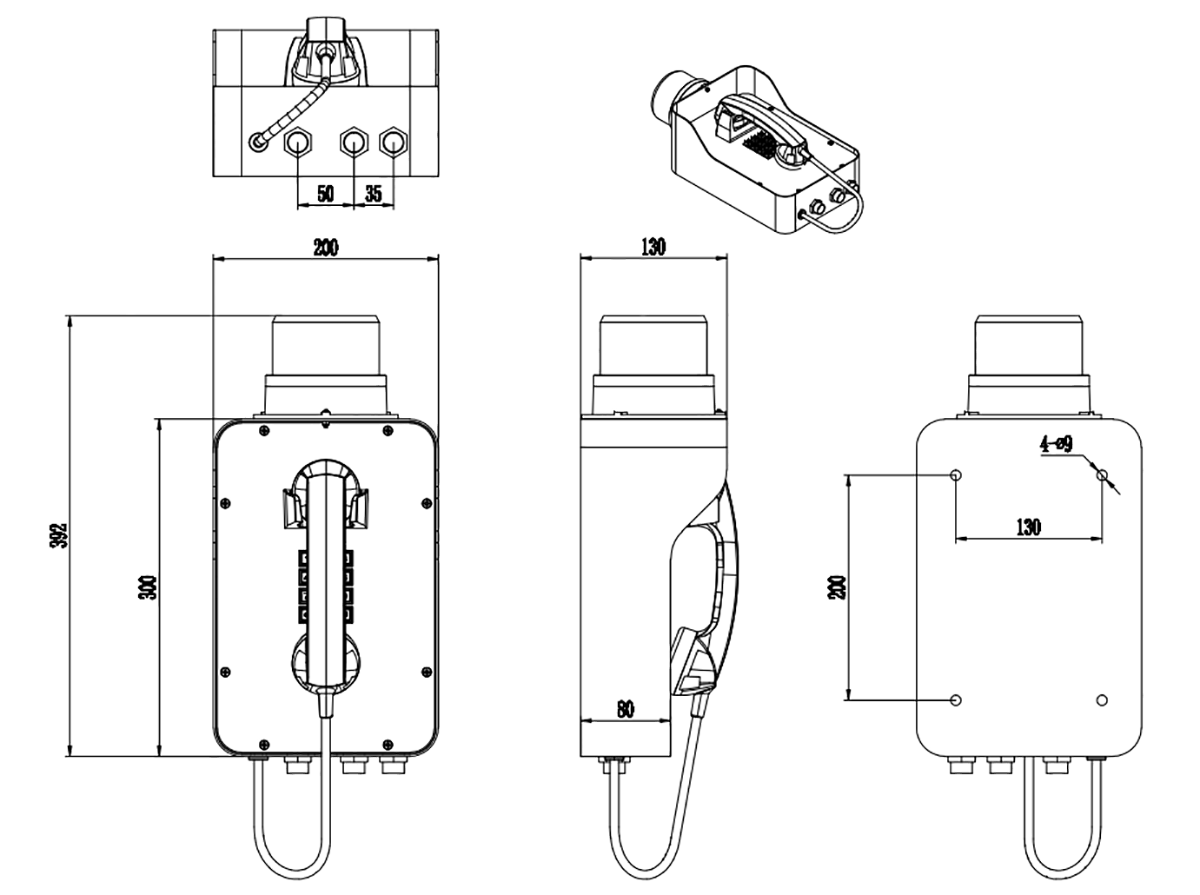

Dimension Drawing

avavba

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
