IP Industrial Waterproof Telephone for Mining Project-JWAT901

Short Description:

Waterproof Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like tunnel, marine, railway ,highway,underground,power plant,dock,etc.

The body of the telephone it is made of Aluminum alloy, a very strong die-casting material, used with generous thicknesses.  The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.

Several versions are available, with stainless steel armored cord or spiral, with or without door, with keypad, without keypad and on request with additional function buttons.




Product Detail

Product Tags

Product Introduction

Waterproof Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Aluminum alloy, a very strong die-casting material, used with generous thicknesses. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.
Several versions are available, with stainless steel armored cord or spiral, with or without door, with keypad, without keypad and on request with additional function buttons.

Features

1.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2.Support 2 lines SIP, SIP 2.0 (RFC3261).
3.Audio Codes:G.711, G.722, G.729.
4.IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP.
5.Echo cancellation code:G.167/G.168.
6.Supports full duplex.
7.WAN/LAN: support Bridge mode.
8.Support DHCP get IP on WAN port.
9.Support PPPoE for xDSL.
10.Support DHCP get IP on WAN port.
11.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
12.Weather proof Protection class to IP68.
13.Waterproof zinc alloy Keypad.
14.Wall mounted, Simple installation.
15.Sound level of ringing:over 80dB(A).
16.The available colors as an option.
17.Self-made telephone spare part available.
18.CE, FCC, RoHS, ISO9001 compliant.

Application

avasv

This Waterproof Telephone Is Very Popular For Mining,Tunnels , Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Power Supply PoE,12V DC or 220VAC
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

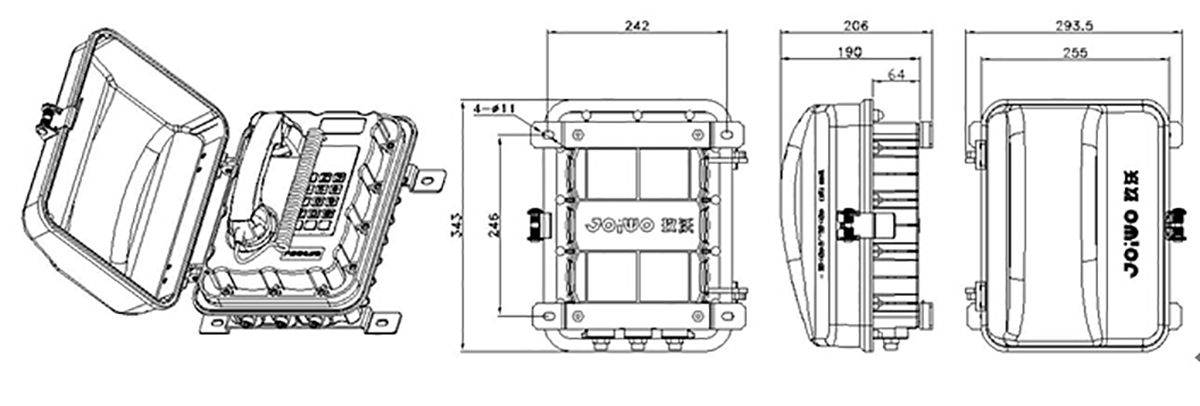

Dimension Drawing

avava

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
