IP Industrial Waterproof Telephone with loudspeaker for Mining Project-JWAT902

Short Description:

It is an industrial waterproof telephone which is fully contained within a corrosion resistant cast aluminium alloy waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.It can be connect to loudspeaker,the volume of the loudspeaker can be adjusted freely.

With a professional sales team in industrial telecommunication filed since 2005 Year,We can recommand you the fit one telephones according to your detail application and requirement.Offer you the best price as soon as we know your detail demand.Each waterproof telephone have been waterproof tested and obtain international certificates. We have our own factories with self-made telephone parts，we can provide competitive, quality assurance, after-sale protection of weatherproof telephone for you.





翻译为中文（简体）



Product Detail

Product Tags

Product Introduction

An setting where dependability, efficiency, and safety are of the utmost significance calls for the use of a waterproof telephone for voice communication.such as a dock, power plant, railway, roadway, or tunnel.
The body of the telephone it is made of Aluminum alloy, a very strong die-casting material, used with generous thicknesses. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.

Features

1.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2. Support SIP 2.0 and 2 lines. (RFC3261).
3.The G.711, G.722, and G.729 audio codes.
4.IP Protocols: TFTP, RTP, RTCP, DHCP, SIP, IPv4, UDP, and TFTP.
5. Echo G.167/G.168 cancellation codes.
6. Allows for complete duplex.
7.WAN/LAN: Bridge mode is supported.
8.Support DHCP get IP on WAN port.
9. Provide xDSL PPPoE support.
10. Support WAN port DHCP obtain IP.
11.A heavy-duty handset featuring a noise-canceling microphone and a receiver compatible with hearing aids.
12. Weatherproof IP68 defend grade.
13.Waterproof zinc alloy Keypad.
14.Wall mounted, Simple installation.
15.Sound level of ringing:over 80dB(A).
16.The available colors as an option.
17.Self-made telephone spare part available.
18.CE, FCC, RoHS, ISO9001 compliant.

Application

avasv

This Weatherproof Telephone Is Very Popular For Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Power Supply PoE,12V DC or 220VAC
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

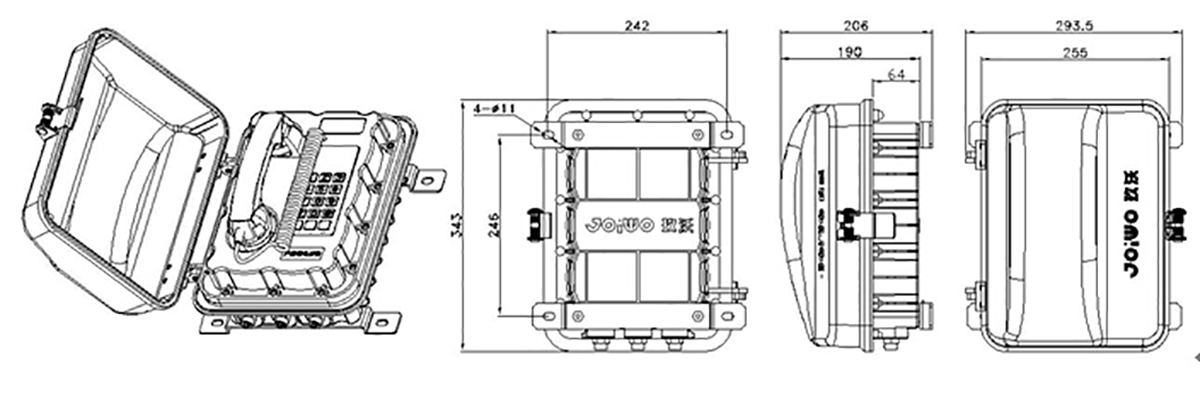

Dimension Drawing

avavav

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
