IP65 waterproof metal keypad for fuel dispenser B713

Short Description:

This 4×4 matrix keypad mainly used for fuel dispenser,which features explosion-proof and waterproof, the keys can be custom made according to your requests,various interfaces meets your demands for any devices.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

Panels and buttons of keypad are made of high quality stainless steel, has a strong anti-destructive. Font button surface and pattern can be customized according to customer requirements. It's mainly for fuel dispenser;vending machine,access control system, security system and some other public facilities.

Features

1.Panels, buttons made of high quality stainless steel, has a strong anti-destructive
2.Font button surface and pattern can be customized according to customer requirements
3.PCB double sided, metal dome lines, access to reliable
4.Key word laser engraving, etching, oil filled, high strength paint
5.4x4 keyboard matrix scanning,10 numeric keys,6 functional keys
6.Buttons layout could be customized as clients’ request.
7.With the exception of the telephone, the keyboard can also be designed for other purposes
8.Keypad connector is optional

Application

va (2)

Mainly designed for fuel dispenser, kiosk, ticket terminals and so on.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

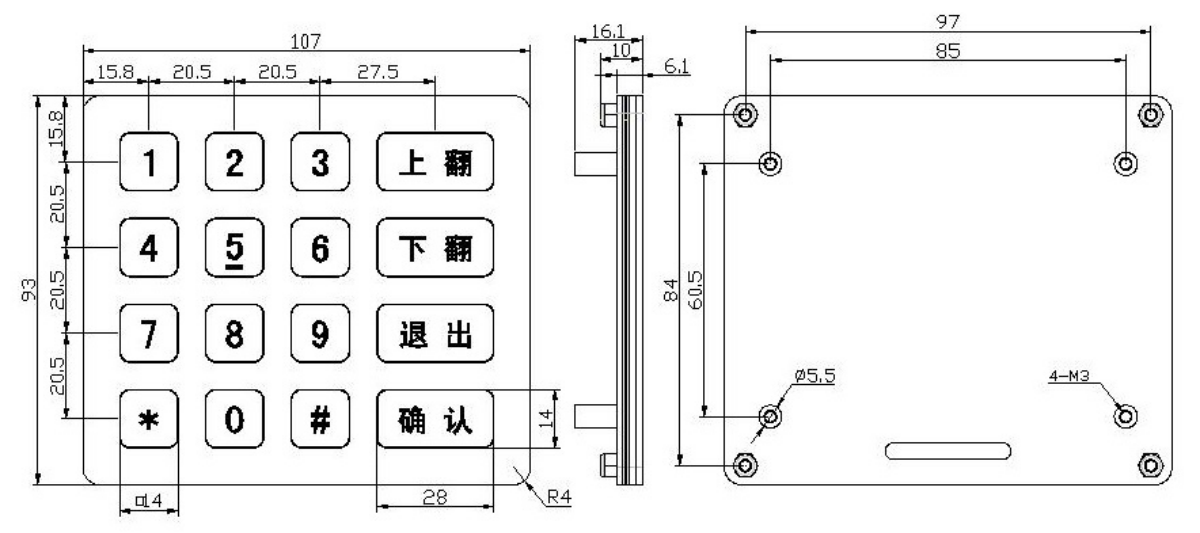

Dimension Drawing

acavb

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
