Outdoor High Way Public Plastic Weatherproof Telephone-JWAT304-1

Short Description:

JWAT304-1 plastic weaterproof telephone is no keypad, so it will have a preset SOS number and make a call when hand up the handset. It can used as emergency call in various places.



The waterproof telephone is suitable for Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Hotels, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.








Product Detail

Product Tags

Product Introduction

JWAT304-1 plastic waterproof telephone can make IP or analog versions of two communication systems. With a waterproof rating of IP65~IP66, plastic water resistant telephone. This weatherproof public telephone can connect with loudspeaker, so it can be use in noisy environments.

Features

1.Engineering plastics injection moulding shell, high mechanical strength and strong impact resistance.
2.Standard Analogue phone. Also available in SIP/VoIP, GSM/3G version.
3.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
4.Weather proof protection to IP66-IP67.
5.Without keypad and can make a preset call number when hands up the handset.
6.Wall mounted, Simple installation.
7.Phone line powered.
8.Connection: RJ11 screw terminal pair cable.
9.Sound level of ringing:over 80dB(A).
10. Multiple housings and colors.
11. Self-made telephone spare part available.
12. CE, FCC, RoHS, ISO9001 compliant.

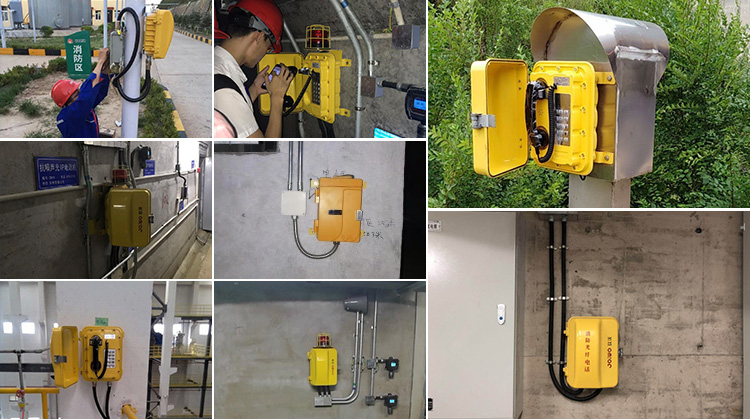

Application

Application

The telephone is commonly used in the field of waterproof protection and is used together with loudspeaker.



Parameters

Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250~3000 Hz
Ringer Volume ≤80dB(A)
Corrosion Grade WF1
Ambient Temperature -40~+60℃
Atmospheric Pressure 80~110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

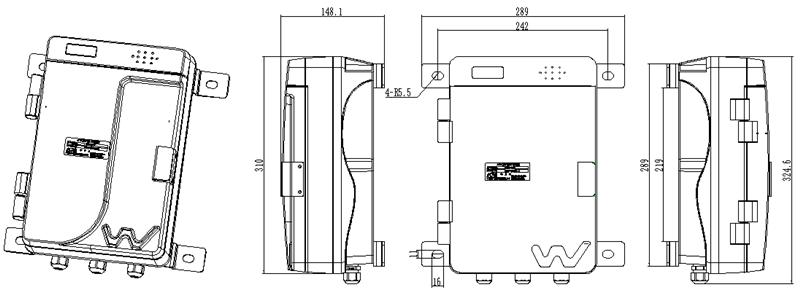

Dimension Drawing

304

Available Connector

color

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.

Each machine is carefully made, it will make you satisfied. Our products in the production process have got strictly monitored, because it is only to provide you the best quality, we will feel confident. High production costs but low prices for our long-term cooperation. You can have a variety choices and the value of all types are same reliable. If you have any question, do not hesitate to ask us.
