Outdoor kiosk keypad stainless steel B765

Short Description:

It’s 7 Keys Vandal proof IP65 stainless steel, with matrix signal. Mainly used for outdoor kiosk, IP65 waterproof and IK09 vandal proof. With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

The keypad mainly used for outdoor kiosk system, elevator and other public facilities.Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Features

1.Keypad made of stainless steel.Vandal resistance.
2.Font button surface and pattern can be customized according to customer requirements
3.keypad made of stainless steel
4.Buttons layout could be customized as clients’ request.
5.With the exception of the telephone, the keyboard can also be designed for other purposes
6.keypad connector: XH plug/ Pins header/ USB/ DB9/ other

Application

va (2)

The keypad normally used for access control system.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

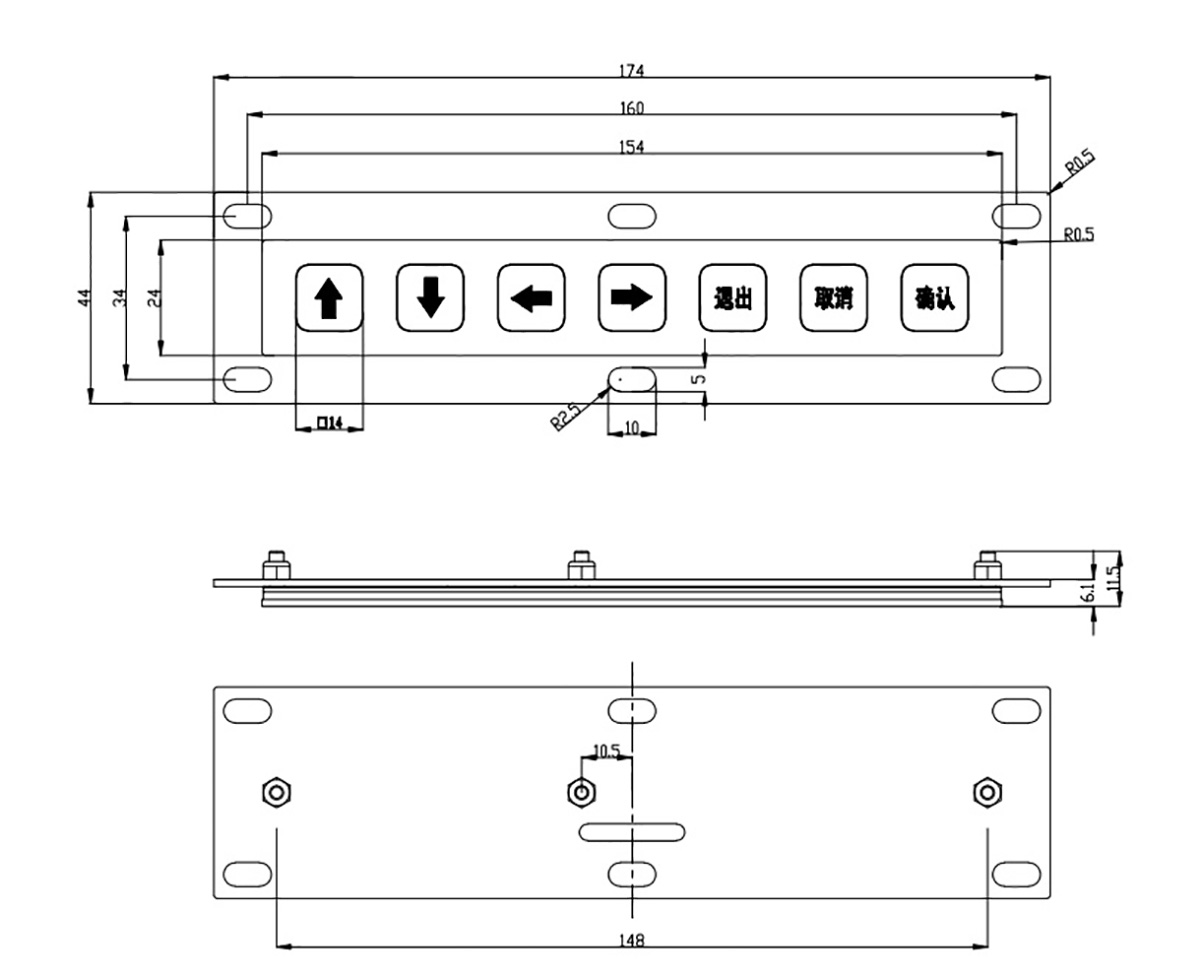

Dimension Drawing

acvav

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
