Plastic Industrial Weatherproof Telephone for Marine Project-JWAT904

Short Description:

It is an industrial weatherproof telephone which is fully contained within a corrosion resistant cast engineering plastic waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

Each weatherproof telephone has been tested for waterproofness and has earned international certifications thanks to a skilled R&D team working in the industrial telecommunications sector since 2005. We can provide you a cost-effective, quality-assured, after-sale protection of a waterproof telephone since we have our own factories with self-made telephone parts.




Product Detail

Product Tags

Product Introduction

Designed for voice communication in difficult and dangerous environments where dependability, efficiency, and safety are of the utmost significance.such as a dock, power plant, railway, roadway, or tunnel.
Engineering plastic, an extremely durable injection molding material, is employed with considerable thicknesses to make the phone's body. Even with the door open, IP67 protection is provided. The door helps keep the inside components, including the handset and keyboard, clean.
There are several variations available, including ones with or without a door, a keypad, a spiral of stainless steel armor, a keypad with or without a keypad, and, upon request, extra function buttons.

Features

1. Engineering plastic injection moulding shell, great impact resistance and high mechanical strength.
2. A standard analog phone.
3.A heavy-duty handset featuring a noise-cancelling microphone and a receiver compatible with hearing aids.
4. Weatherproof IP67 protection class.
5.A full waterproof keypad made of zinc alloy has function keys that may be set up as a speed dial, redial, flash recall, hang up, or mute button.
6. Wall-mounted, easy to install.
RJ11 screw terminal pair cable is used for connection.
8.Ringing sound volume: over 80 dB(A).
9. The optional hues that are offered.
10. There are spare parts for homemade phones available.
11. Compliant with CE, FCC, RoHS, and ISO9001.

Application

avasv

This Weatherproof Telephone Is Very Popular For Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

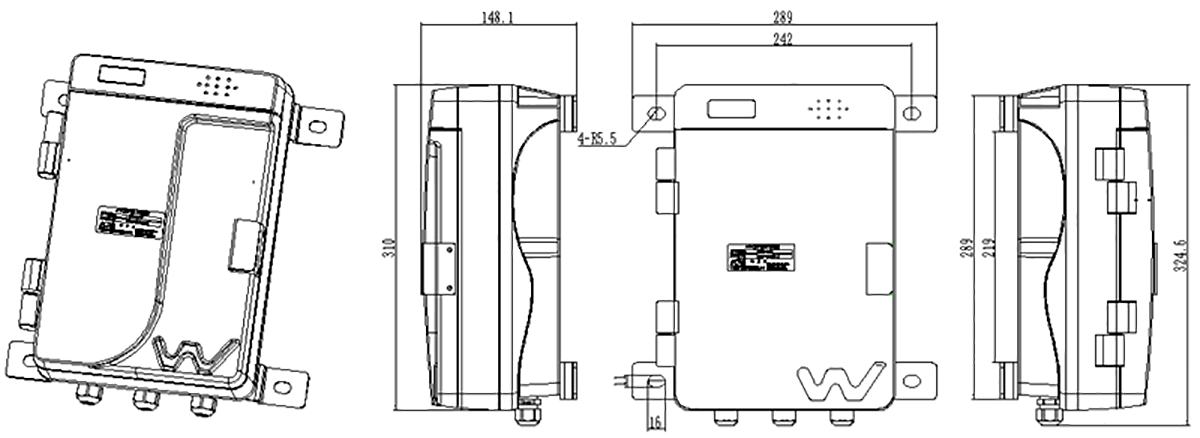

Dimension Drawing

vav

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
