Plastic Industrial Weatherproof Telephone with loudspeaker for Marine Project-JWAT305

Short Description:

It is an industrial weatherproof telephone which is fully contained within a corrosion resistant cast engineering plastic waterproof case.With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.It can be connect to loudspeaker,the volume of the loudspeaker can be adjusted freely.

Ningbo Joiwo have outstanding R&D team, strict QC team, exquisite technology team and good service sales team to offer our customer the best service and products since 2005 Year.




Product Detail

Product Tags

Product Introduction

Weatherproof Telephone is designed for voice communication in harsh & hostile environment where reliability efficiency and safety are of prime importance.Like tunnel, marine, railway ,highway,underground,power plant,dock,etc.
The body of the telephone it is made of Engineering plastic, a very strong injection molding material, used with generous thicknesses. The degree of protection is IP67, even with the door open. The door participates in keeping the inside parts like handset and keypad clean.
Several versions are available, with stainless steel armored cord or spiral, with or without door, with keypad, without keypad and on request with additional function buttons.

Features

1.1.Engineering plastic injection moulding shell, high mechanical strength and strong impact resistance.
2.Standard Analogue phone.
3.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
4.Weather proof Protection class to IP67.
5.Waterproof zinc alloy full Keypad with function keys which can be programmed as speed dial/redial/flash recall/hang up/mute button.
6.Wall mounted, Simple installation.
7.Connection: RJ11 screw terminal pair cable.
8.Sound level of ringing:over 80dB(A).
9.The available colors as an option.
10. Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant.

Application

bvswbsb

This Weatherproof Telephone Is Very Popular For Marine,Tunnels, Mining, Underground, Metro Stations, Railway Platform, Highway Side, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤0.2A
Frequency Response 250～3000 Hz
Ringer Volume >80dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+60℃
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Lead Hole 3-PG11
Installation Wall-mounted

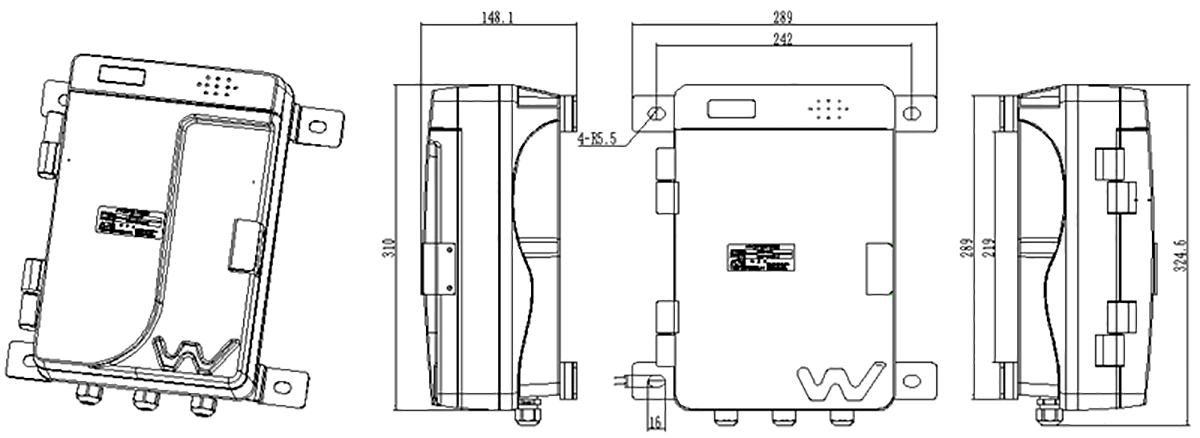

Dimension Drawing

bvswbsb

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
