Plastic public telephone cradle C02

Short Description:

It is mainly for access control system, industrial telephone, vending machine, security system and some other public facilities.We are specialized in the production of industrial and military communication telephone handsets, cradles, keypads and related accessories. With 18 years’ development, it has 6,000 square meters of production plants and 80 employees now, which has the ability from original production design, molding development, injection molding process, sheet metal punching processing, mechanical secondary processing, assembly and oversea sales.


Product Detail

Product Tags

Product Introduction

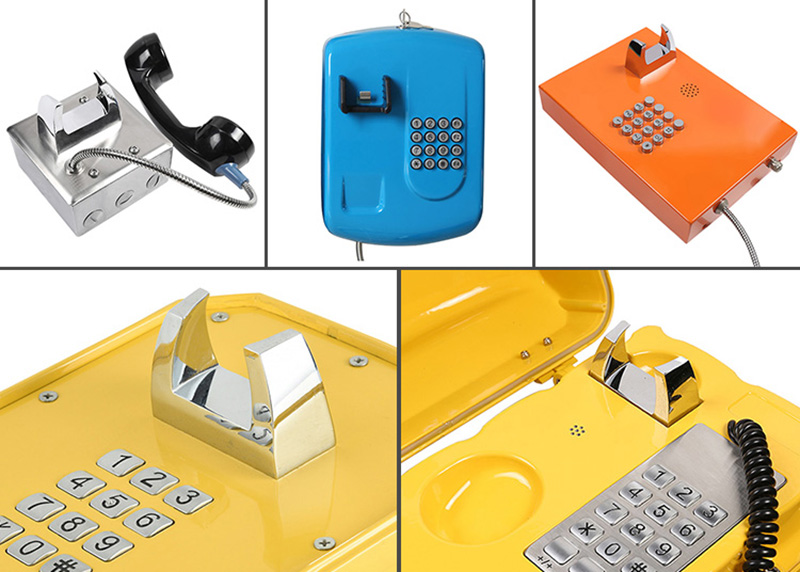

zinc alloy heavy-duty industrial telephone hook switch material handset cradle for public phone

Features

1. Hook body made of special PC / ABS plastic, has a strong anti-sabotage capability.
2. High quality switch, continuity and reliability.
3. Color is optional
4. Range:Suitable for A01、A02、A09、A14、A15、A19 handset.

Application

VAV

It is mainly for access control system, industrial telephone,vending machine, security system and some other public facilities.

Parameters

Item

Technical data

Service Life

>500,000

Protection Degree

IP65

Operate temperature

-30~+65℃

Relative humidity

30%-90%RH

Storage temperature

-40~+85℃

Relative humidity

20%~95%

Atmospheric pressure

60-106Kpa

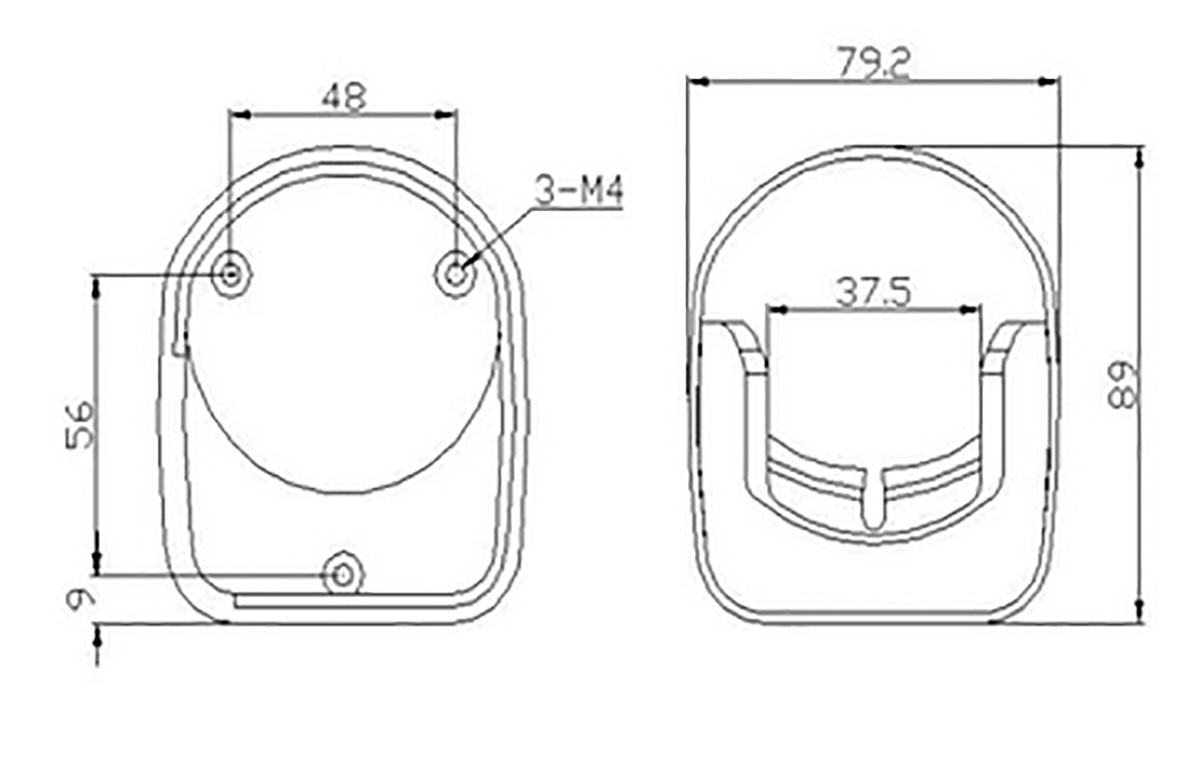

Dimension Drawing

AVAV
