Public Hotel Analog Communication Prison Telephone-JWAT145-1

Short Description:

This JWAT145-1 stainless steel jail telephone has a heavy chrome metal keypad bezel, buttons, and hook-switch lever withstand abuse and vandalism. Armored handset cord is equipped with a steel lanyard .Handset has sealed transmitter and receiver caps, suitable for heavy use and abuse locations. If no keypad, the telephone can also use as emergency auto dial telephone.



This telephone could be used for jails, hospitals, oil rigs, platforms, dormitories, airports, control rooms, sally ports, schools, plant, gate and entryways, PREA phone,or waiting rooms etc.






Product Detail

Product Tags

Product Introduction

This prison jail telephone is widely used in inmate prison as visitation communication. It is also available for IP VOIP communication system.
This industrial indoor telephone can customize without keypad, and use as auto dial public telephone.

Features

1.Standard Analogue phone. Phone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Heavy chrome metal keypad bezel, buttons, and hook-switch lever withstand abuse and vandalism.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available.
7.Wall mounted, Simple installation.
8.Weather proof protection IP54.
9.Connection: RJ11 screw terminal pair cable.
10.Multiple color available.
11.Self-made telephone spare part available.
12. CE, FCC, RoHS, ISO9001 compliant.

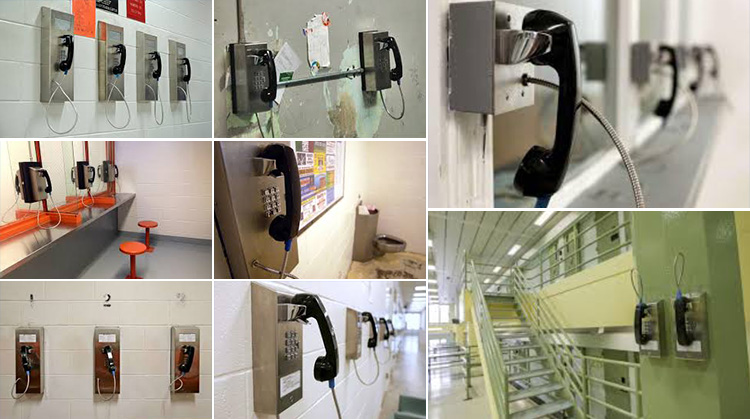

Application

Application

This prison telephone is made of stainless steel 304. The telephone can be used as an automatic dialing phone without a keypad. Standard Analogue phone and Armored handset cord is equipped with a steel lanyard.

Parameters

  Power Supply Telephone Line Powered
  Voltage DC48V
  Standby Work Current ≤1mA
  Frequency Response 250~3000 Hz
  Ringer Volume ≤80dB(A)
  Corrosion Grade WF1
  Ambient Temperature -40~+70℃
  Atmospheric Pressure 80~110KPa
 Relative Humidity ≤95%
 Anti-vandalism Level IK10
 Installation Wall-mounted

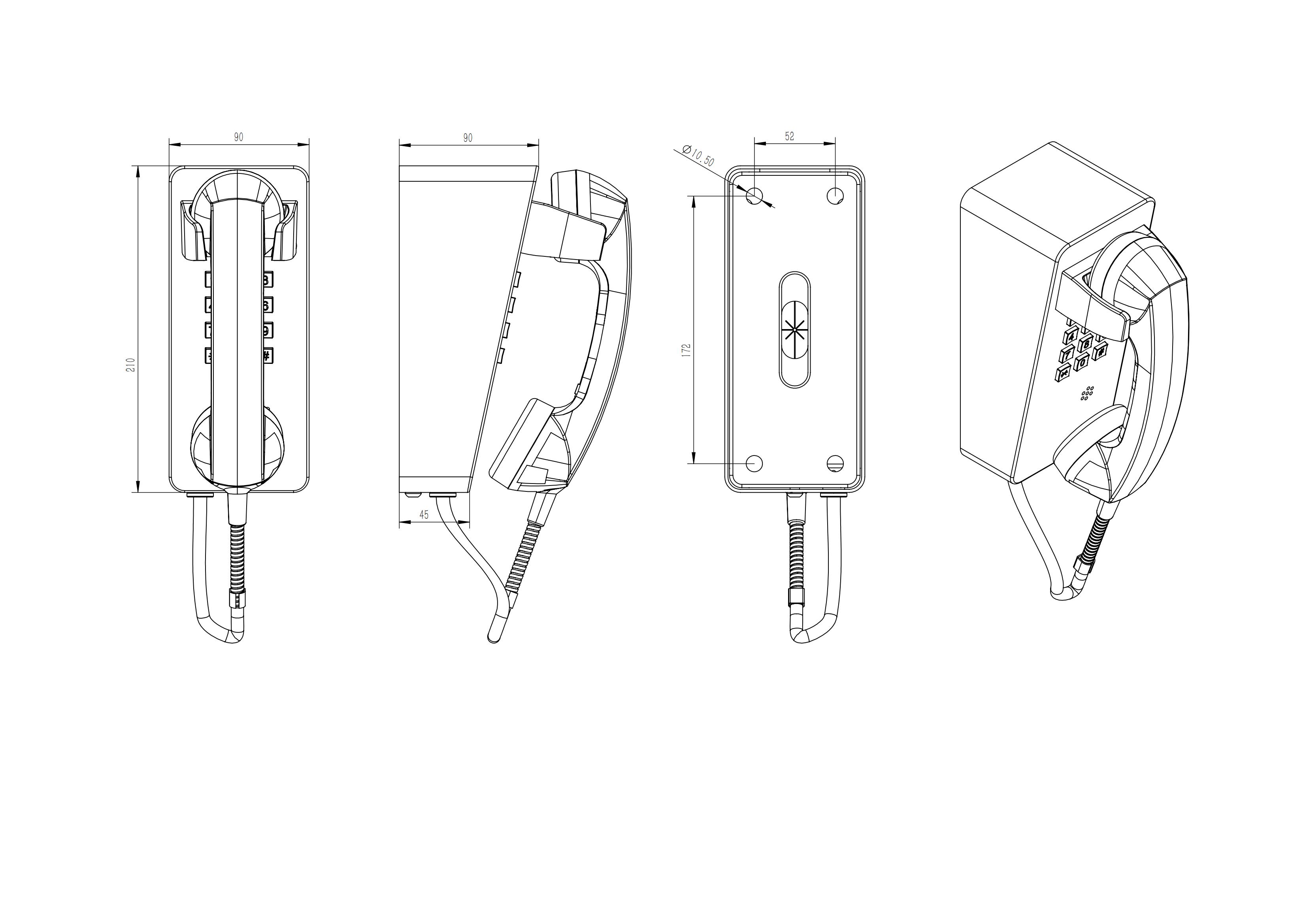

Dimension Drawing

145改小_00

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.

Each machine is carefully made, it will make you satisfied. Our products in the production process have got strictly monitored, because it is only to provide you the best quality, we will feel confident. High production costs but low prices for our long-term cooperation. You can have a variety choices and the value of all types are same reliable. If you have any question, do not hesitate to ask us.
