RS232 IP65 metal keypad for bank used B720

Short Description:

This keypad normally used for public facilities, especially for bank used. Panels, buttons of the keypad are made of high quality stainless steel, which features strong anti-destructive.

With a professional R&D team in industrial telecommunication filed for 17 years, we could customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

The keypad normally used in public environment  applications, such as vending machines,  ticket machines, payment terminals,  telephones, access control systems and  industrial machinery.

Features

1.Panels, buttons made of high quality stainless steel, has a strong anti-destructive
2.PCB double sided, metal dome lines, access to reliable
3.Key word laser engraving, etching, oil filled, high strength paint
4.3x4 keyboard matrix design.
5.Keys layout can be customized.
6.Keypad signal is optional.
7.Connector: XH plug/ Pins header/ USB/ Others

Application

va (2)

Mainly designed for bank and other public facilities.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 500 thousand cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

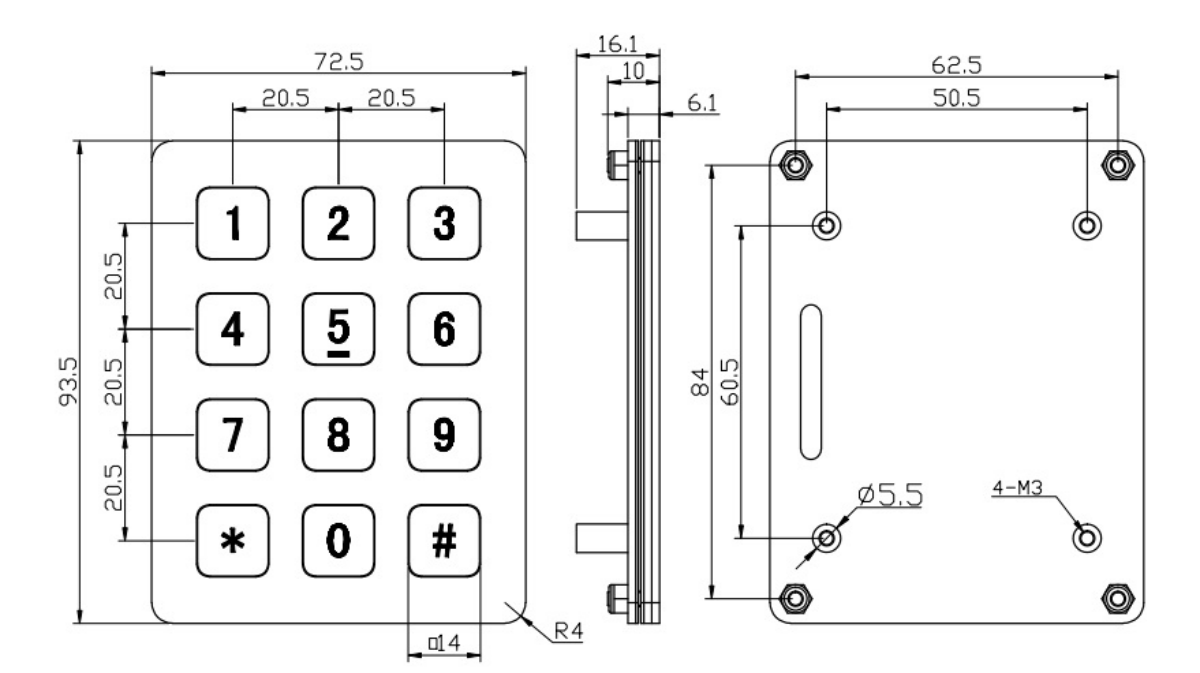

Dimension Drawing

acav

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
