RS485 access control illuminated numeric Industrial Rugged keypad B661

Short Description:

It is mainly used for self service kiosk, Industrial PC system, Medical & Food industry, Gaming machine & Vending Machine, Navigation & aviation, CNC machine and other factory equipment.

We have introduced button graphic analyzer, working life tester, elastic tester, salt spray tester,pulling strength tester, military grade high and low temperature tester, etc, to ensure the technical requirements and standards meet the demand at home and abroad.


Product Detail

Product Tags

Product Introduction

This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

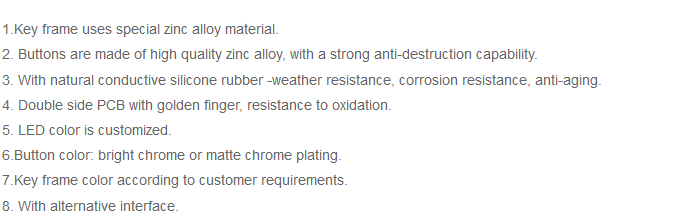

Features

QQ截图20230505151329

Application

vav

It is mainly for access control system, industrial telephone,vending machine, security system and some other public facilities.

Parameters

Item

Technical data

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 2 million time per key

Key Travel Distance

0.45mm

Working Temperature

-25℃~+65℃

Storage Temperature

-40℃~+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60kpa-106kpa

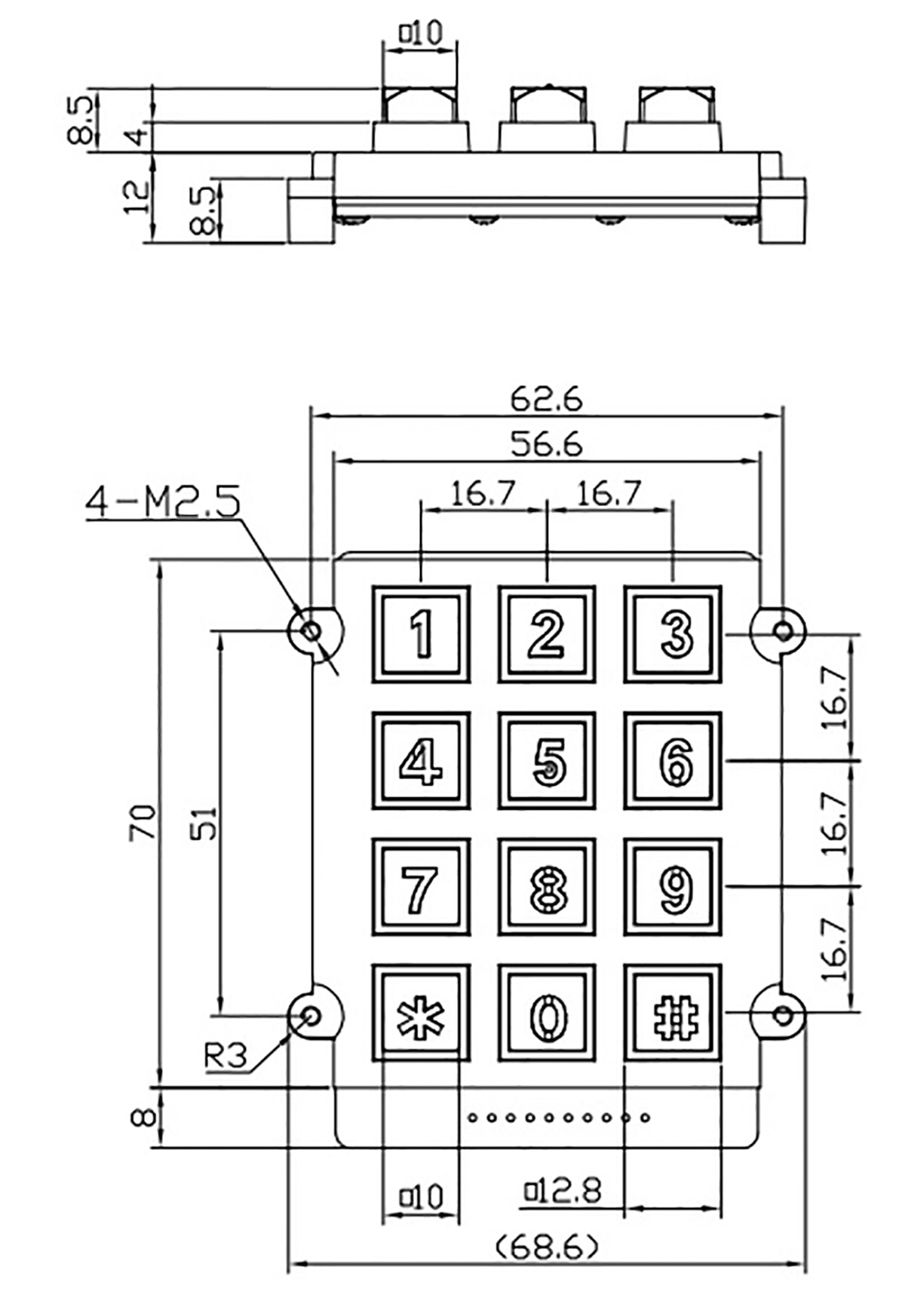

Dimension Drawing

SCVAVA

Available Connector

vav (1)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Available color

avava

If you have any color request, let us know.

Test machine

avav

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
