Rugged K-style handset for campus telephones A05

Short Description:

It is a classic telephone handset with waterproof features, which designed for payphones, campus telephones or dispatching desk system.

During the past 5 years, we focus to bring new automatic machines in production process,like mechanical arms, auto sorting machines, auto painting machines and so on to improve the daily capacity and reduce the cost completely.


Product Detail

Product Tags

Product Introduction

As a telephone handset for campus telephones, vandal proof features and waterproof grade are very important factors when choose handsets. For outdoor environment, UL approved ABS material and Lexan anti-UV PC material are available for different usages; With different kinds of speakers and microphones, the handsets could be matched with various motherboard to reach high sensitivity or noise reducing functions; hearing-aid speaker could also be chose for hearing-impaired person and noise reducing microphone could cancel the noise from background when answering calls.

Features

1.PVC curly cord (standard), operating temperature:
- Standard chord length is 9 inches when retracted and 6 feet when extended (by default).
- Customized lengths are available.
2. PVC curly cord that is weather resistant (optional)
3. (Optional) Hytrel curly cord
4.Armoured cord made of SUS304 stainless steel (default)
- Standard armored cord length is 32 inches, with alternative lengths of 10 inches, 12 inches, 18 inches, and 23 inches.
- Include a steel lanyard that is attached to the telephone shell. The draw strength of the matched steel rope varies.
- Diameter: 1.6mm (0.063"), Pull test load: 170 kg (375 lbs).
- Diameter: 2.0mm (0.078"), Pull test load: 250 kg (551 lbs).
- Diameter: 2.5mm (0.095"), Pull test load: 450 kg (992 lbs).

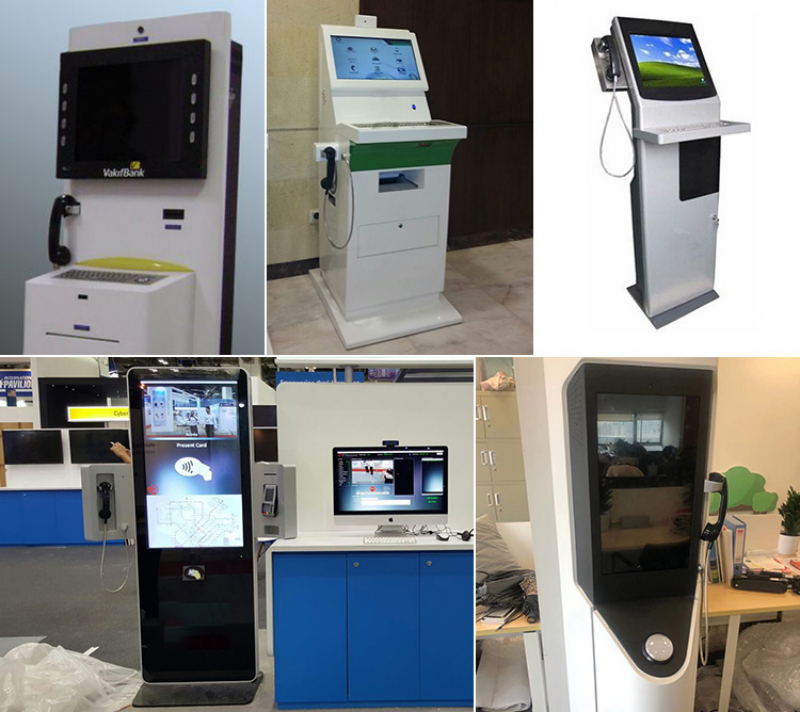

Application

cav

It could used in campus telephones,payphones or dispatching desk system.

Parameters

Item

Technical data

Waterproof Grade

IP65

Ambient Noise

≤60dB

Working Frequency

300~3400Hz

SLR

5~15dB

RLR

-7~2 dB

STMR

≥7dB

Working Temperature

Common:-20℃~+40℃

Special: -40℃~+50℃

(Please tell us your request in advance)

Relative Humidity

≤95%

Atmospheric Pressure

80~110Kpa

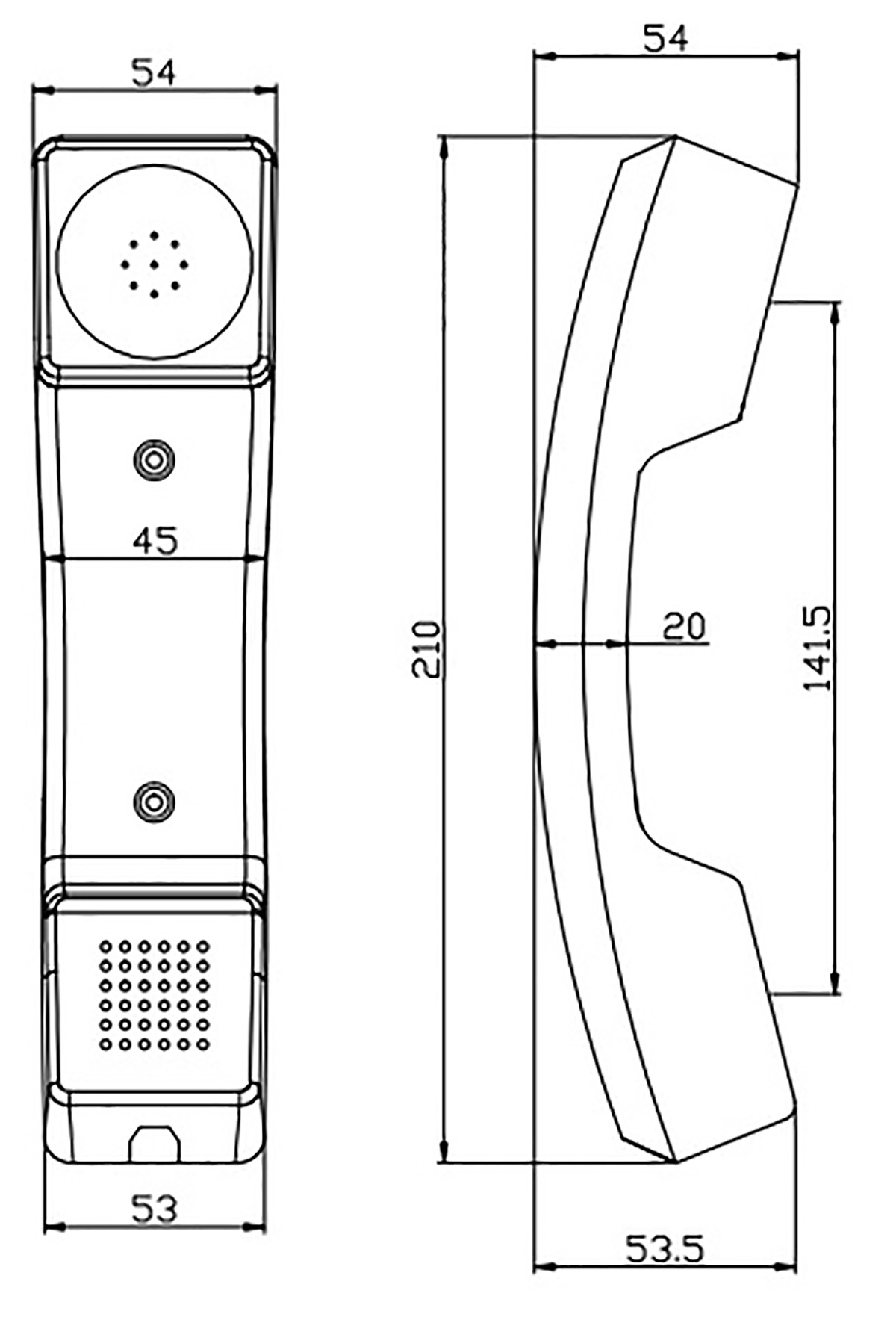

Dimension Drawing

svav

Available Connector

p (2)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Available color

p (2)

If you have any color request, let us know the Pantone color No.

Test machine

p (2)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
