Traditional durable anti-vandalism handset for outdoor payphones A11

Short Description:

This handset is designed with IP65 waterproof grade and rugged structure, so it could be used in any outdoor telephones without shield.

We have professional test machines like pulling strength test, high-low temperature test machine, slat spray test machine and RF test machines in our lab. So we could offer exact test report to clients to make all customer clear of all the details in advance.


Product Detail

Product Tags

Product Introduction

This handset was designed for traditional payphones but it could also be used any public telecommunication system with anti torn off caps. So the vandalism grade is improved largely when used in public places.
For outdoor environment, UL approved ABS material and Lexan anti-UV PC material are available and it could keep good appearance after used many years. With noise canceling microphone and hearing-aid speaker, this handset could be chose for hearing-impaired person and noise reducing microphone could cancel the noise from background.

Features

1.PVC curly cord (Default), working temperature:
- Standard cord length 9 inch in retracted, 6 feet after extended (Default)
- Customized different length is available.
2. Weather resistant PVC curly cord (Optional)
3. Hytrel curly cord (Optional)
4. SUS304 Stainless steel armored cord (Default)
- Standard armored cord length 32 inch and 10 inch, 12 inch,18 inch and 23 inch are optional.
- Include steel lanyard which is anchored to telephone shell. Matched steel rope is with different pull strength.
- Dia: 1.6mm, 0.063”, Pull test load:170 kg, 375 lbs.
- Dia: 2.0mm, 0.078”, Pull test load:250 kg, 551 lbs.
- Dia: 2.5mm, 0.095”, Pull test load:450 kg, 992 lbs.

Application

cav

It could be used in any public telephones, outdoor payphones, outdoor emergency telephones or outdoor kiosk.

Parameters

Item

Technical data

Waterproof Grade

IP65

Ambient Noise

≤60dB

Working Frequency

300~3400Hz

SLR

5~15dB

RLR

-7~2 dB

STMR

≥7dB

Working Temperature

Common:-20℃~+40℃

Special: -40℃~+50℃

(Please tell us your request in advance)

Relative Humidity

≤95%

Atmospheric Pressure

80~110Kpa

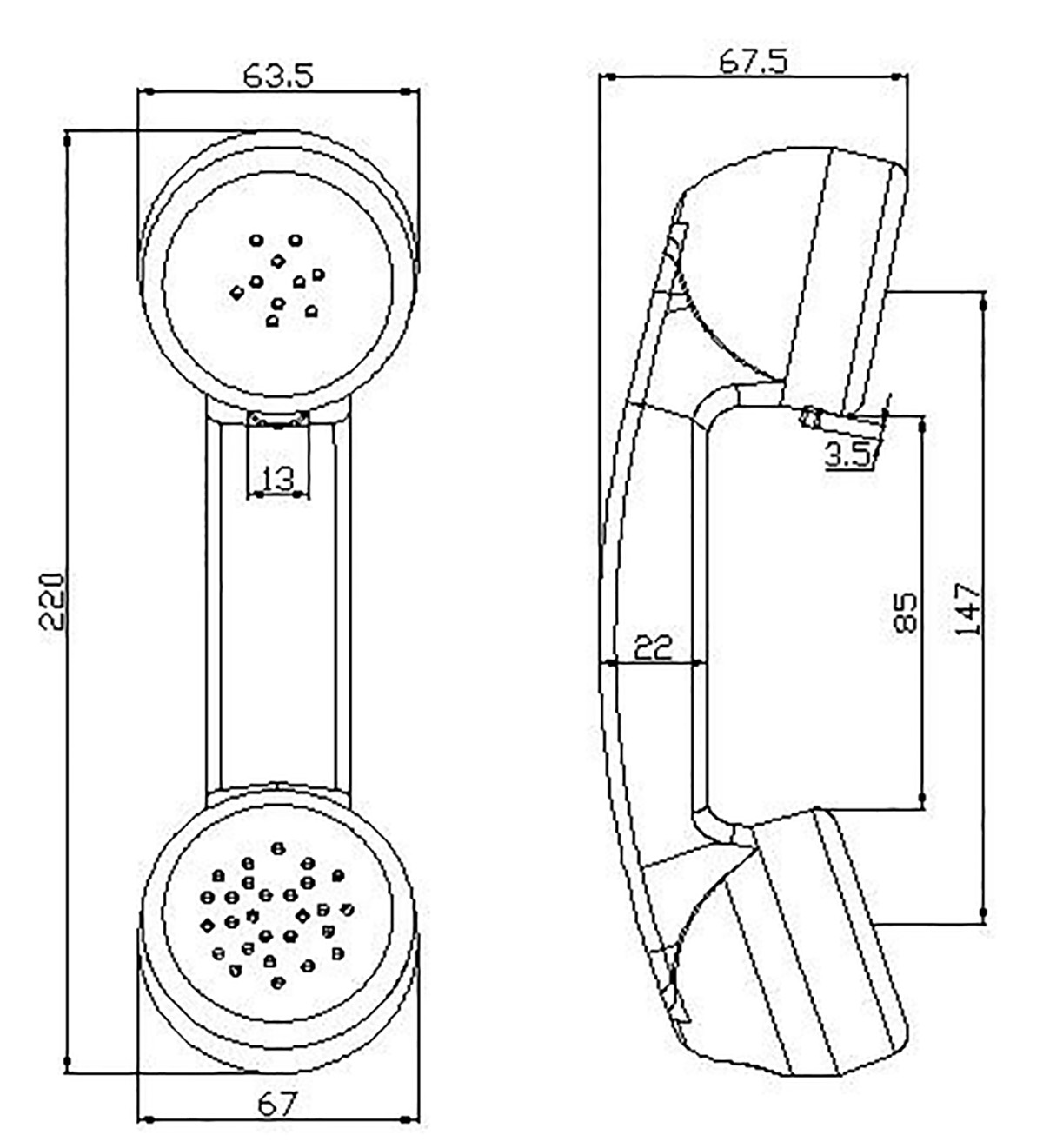

Dimension Drawing

avavb

Available Connector

p (2)

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Available color

p (2)

If you have any color request, let us know the Pantone color No.

Test machine

p (2)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
