Vandal Proof Amored Cord Handset Public Weatherproof Telephone-JWAT306-1
Short Description:
Weatherproof telephone JWAT306-1 is fully contained within a corrosion and vandal resistant cast aluminium alloy weatherproof case with a pivoted door protecting against dust and moisture ingress.

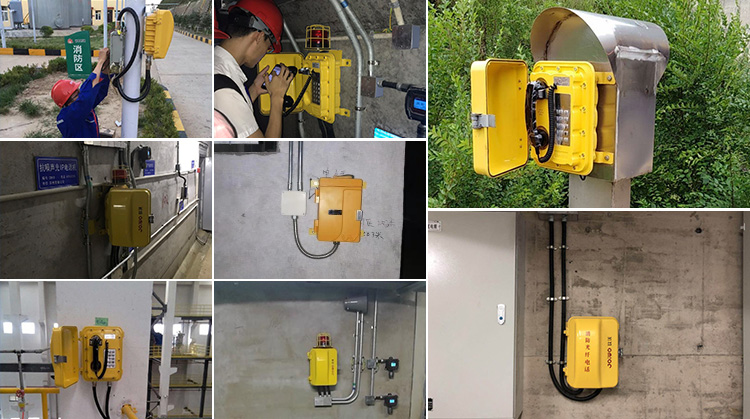

It is suitable for outdoor public use, can be installed in Highway, Tunnels, Mining, Marine, Underground, Metro Stations, Railway Platform, Highway Side, Hotels, Parking Lots, Steel Plants, Chemical Plants, Power Plants And Related Heavy Duty Industrial Application, Etc
This weatherproof telephone is analog communication telephone, it is fully contained within a corrosion and vandal resistant cast aluminium alloy weatherproof case with a pivoted door protecting against dust and moisture ingress. This waterproof telephone can connect with loudspeaker and warning lights and is professional in harsh enviroment.
1.Aluminum alloy die-casting shell, high mechanical strength and strong impact resistance.
2.Standard Analogue phone. Also available in SIP/VoIP, GSM/3G version.
3.Heavy Duty handset with hearing Aid compatible receiver, Noise canceling microphone.
4.Weather proof protection to IP66-IP67.
5.Stainless Steel Illuminated Keypad, buttons can be programmed as speed dial button.
6.Wall mounted, Simple installation.
7.Phone line powered.
8.Connection: RJ11 screw terminal pair cable.
9.Sound level of ringing:over 70dB(A).
10.Multiple housings and colors.
11. Self-made telephone spare part available.
12. CE, FCC, RoHS, ISO9001 compliant.
The telephone is commonly used in the field of waterproof protection and is used together with loudspeaker and warning light.
| Power Supply | Telephone Line Powered |
| Voltage | 24--65 VDC |
| Standby Work Current | ≤0.2A |
| Frequency Response | 250～3000 Hz |
| Ringer Volume | ≤80dB(A) |
| Corrosion Grade | WF1 |
| Ambient Temperature | -40～+60℃ |
| Atmospheric Pressure | 80～110KPa |
| Relative Humidity | ≤95% |
| Lead Hole | 3-PG11 |
| Installation | Wall-mounted |
Available Connector
85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
