vandal proof USB keypad for fuel dispenser machine B519

Short Description:

This keypad with IP65 3*4 matrix die cast keypad is mainly for industrial telephone set

We have introduced button graphic analyzer, working life tester, elastic tester, salt spray tester, keypad visual scanner, pulling strength tester, military grade high and low temperature tester, drop tester, world standard electroacoustic index tester, etc, to ensure the technical requirements and standards meet the demand at home and abroad.

Send email to us

Product Detail

Product Tags

Product Introduction

This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Features

1.Key frame uses high quality zinc alloy.
2. Buttons are made of high quality zinc alloy, with a strong anti-destruction capability.
3. With natural conductive silicone rubber -weather resistance, corrosion resistance, anti-aging.
4. Double side PCB with golden finger, resistance to oxidation.
5.Button color: bright chrome or matte chrome plating.
6.Key frame color according to customer requirements.
7.With alternative interface.

Application

It is mainly for access control system, industrial telephone,vending machine, security system and some other public facilities.

Parameters

Item	Technical data
Input Voltage	3.3V/5V
Waterproof Grade	IP65
Actuation Force	250g/2.45N(Pressure point)
Rubber Life	More than 2 million time per key
Key Travel Distance	0.45mm
Working Temperature	-25℃~+65℃
Storage Temperature	-40℃~+85℃
Relative Humidity	30%-95%
Atmospheric Pressure	60kpa-106kpa

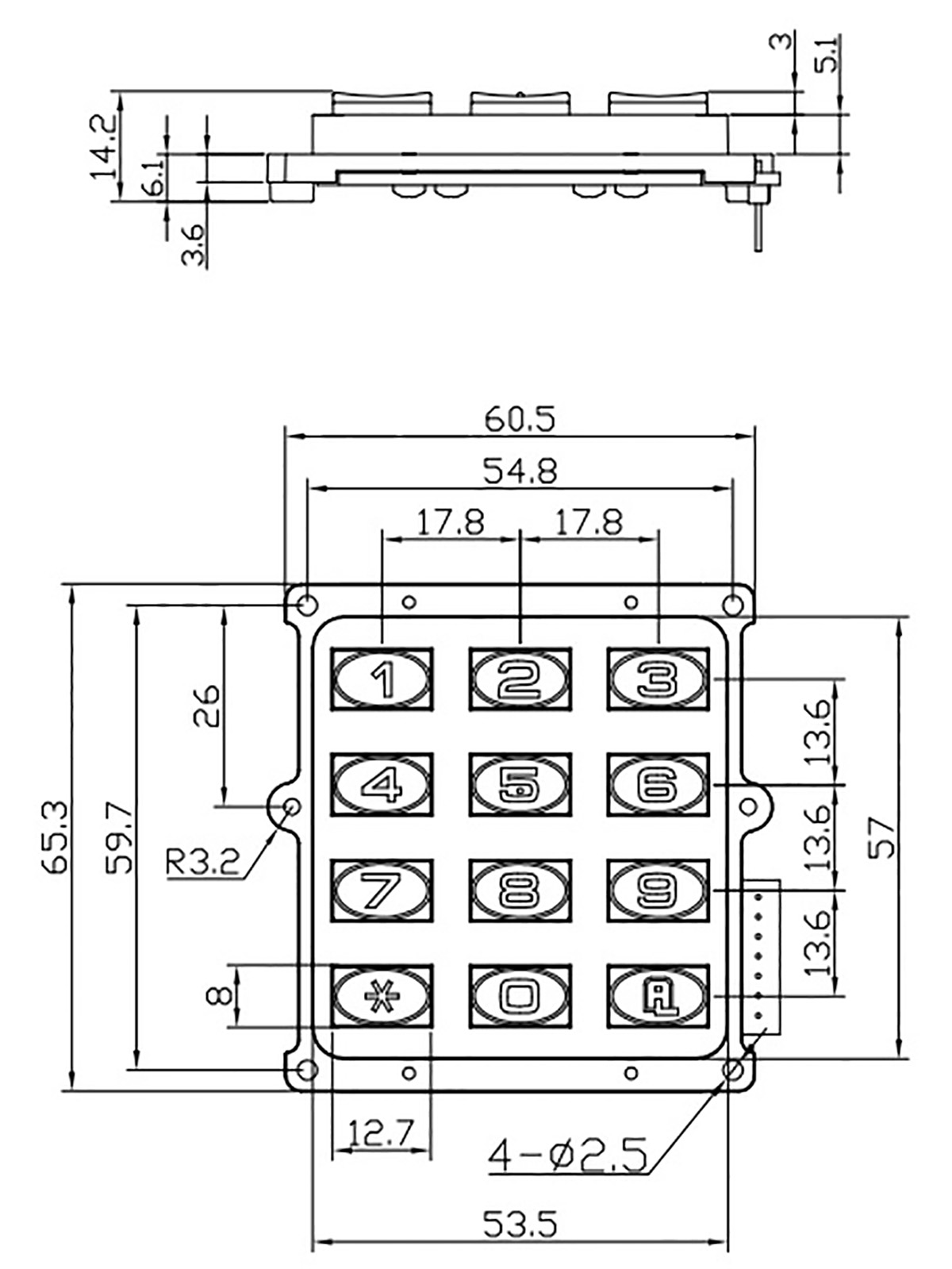

Dimension Drawing

Available Connector

Any appointed connector could be made as customer's request. Let us know the exact item No. in advance.

Test machine

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
