Vandal Proof Visitation No-Dial Analog Voip Courtesy Taxi Telephone-JWAT146

Short Description:

Joiwo’s Auto Dial Vandal Proof, Armored Hotline Visitation No-Dial Phone ,is offer direct efficient communication for prison visitation areas, dormitories,correctional Institution,control rooms, hospitals,police stations, ATM machines, airports, stadiums, gate and entryways.

With a professional R&D team in industrial public jail telecommunication filed since 2005 Year, Each vandal Resistant Telephone have been passed the FCC,CE international certificates.

Your first-choice provider of innovative communication solutions and competitive products  for the Jail communication.





此页面的语言为英语
翻译为中文（简体）



Product Detail

Product Tags

Product Introduction

JWAT146 Hotline telephone is designed to dial a preset number when the handset is lifted .
The body of the telephone is made of SUS304 stainless steel (Cold rolled steel option), corrosion resistance and oxidation resistance, with high tensile handset which could afford 100kg force strength.Equipped with tamper resistant security screws for added strength and durability.
Several versions are available, color customized，with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made ,every parts like keypad, cradle, handset could be customized.

Features

1.Standard Analogue phone. Phone line powered.
2.304 stainless steel material shell, high mechanical strength and strong impact resistance.
3.Vandal resistant handset with Internal steel lanyard and grommet provides added security for handset cord.
4.Automatic dialing.
5.Magnetic hook switch with reed switch.
6.Optional noise-canceling microphone available
7.Wall mounted, Simple installation.
8.Connection: RJ11 screw terminal pair cable.
9.Multiple color available.
10.Self-made telephone spare part available.
11. CE, FCC, RoHS, ISO9001 compliant

Application

ascasc (1)

The stainless steel phone can be used in a variety of applications such as in jails, hospitals, health center,guard room,platforms, dormitories, airports, control rooms, sally ports, campus, plant, gate and entryways, PREA phone,or waiting rooms etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage 24--65 VDC
Standby Work Current ≤1mA
Frequency Response 250～3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF1
Ambient Temperature -40～+70℃
Anti-vandalism Level IK10
Atmospheric Pressure 80～110KPa
Relative Humidity ≤95%
Installation Wall-mounted

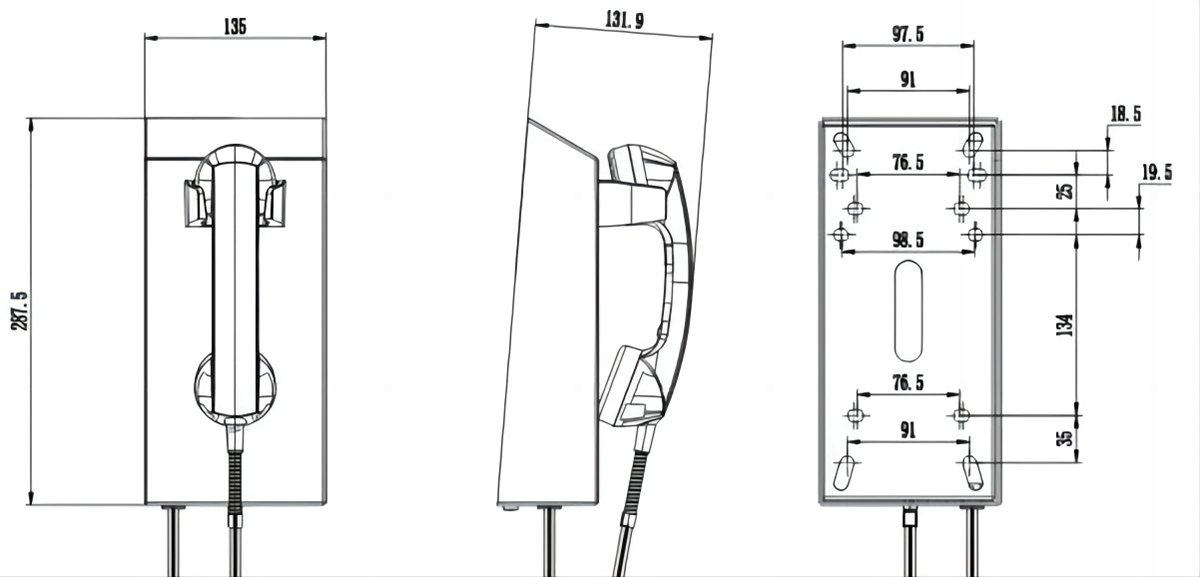

Dimension Drawing

avasv

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
