Wall mount emergency intercom Speakerphone telephone for hospital-JWAT403

Short Description:

JWAT403 (1)


Product Detail

Product Tags

Product Introduction

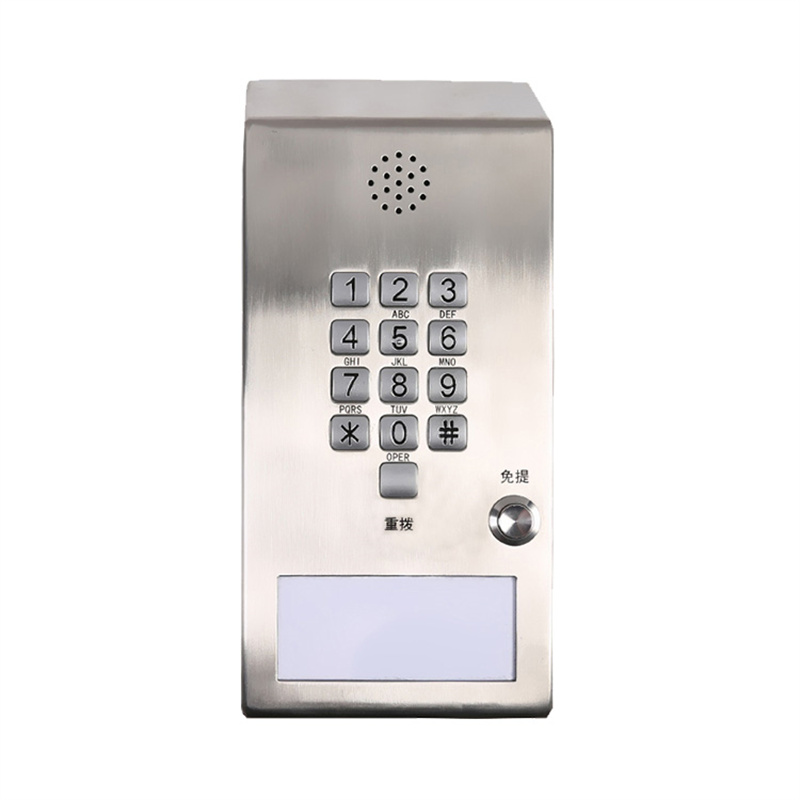

This JWAT413 dust-free Emergency speakerphone provides hands-free communication through the existing Analog Telephone line or VOIP network and is suitable for a sterile environment.
This kind telephone adopts the latest technological design of clean and sterile room telephone terminal. Ensure that there is no gap or hole on the surface of the equipment, and there is basically no convex design on the installation surface.
The body of the telephone is made of SUS304 stainless steel,  it is easily decontaminated by washing with detergents and bactericidal preparations.The cable entrance is on the back of the phone to prevent from artificial damage.
Several versions are available, color customized,with keypad, without keypad and on request with additional function buttons.
Telephone parts is produced by self-made , every parts like keypad could be customized.

Features

1.Standard Analogue phone. SIP version available.
2.Robust housing, constructed of 304 stainless steel material.
3.4 X Tamper proof screws for mounting
4.Hands-free Operation.
5.Vandal resistant stainless steel keypad.One is speaker button, the other one is speed dial button.
6.Wall mounted Installation type.
7.Defend Grade protection IP54-IP65 according to the different water proof requirement.
8.Connection: RJ11 screw terminal pair cable.
9.Self-made telephone spare part available.
10.CE, FCC, RoHS, ISO9001 compliant.

Application

VAV

The Intercom usually used in Clean room, Laboratory, Hospital Isolation areas, Sterile areas, and other restricted environments. Also available for Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.

Parameters

Item Technical data
Power Supply Telephone Line Powered
Voltage DC48V
Standby Work Current ≤1mA
Frequency Response 250~3000 Hz
Ringer Volume >85dB(A)
Corrosion Grade WF2
Ambient Temperature -40~+70℃
Anti-vandalism Level IK9
Atmospheric Pressure 80~110KPa
Weight 2.5kg
Relative Humidity ≤95%
Installation Wall mounted

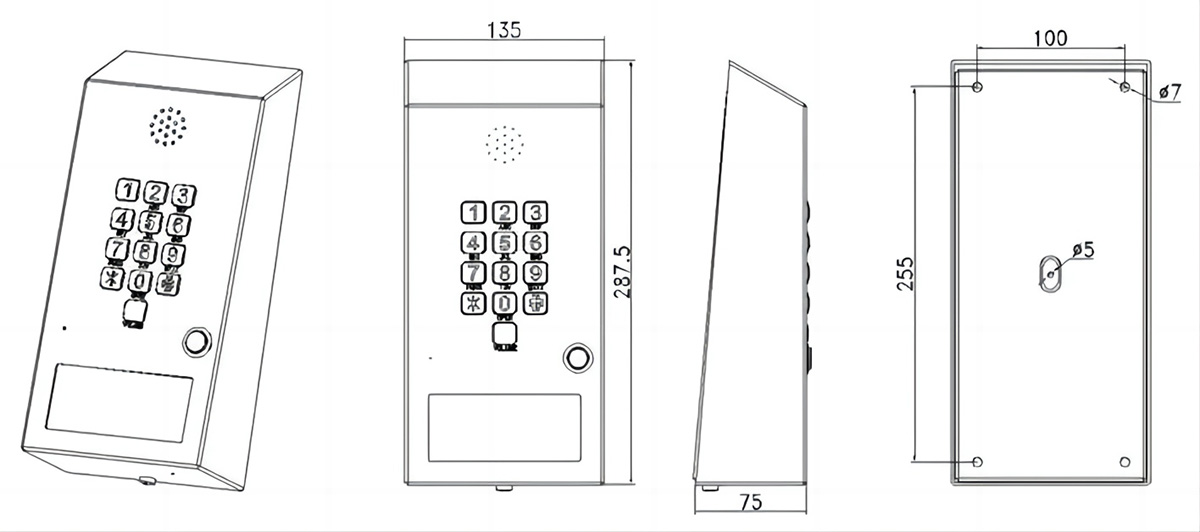

Dimension Drawing

FAVA

Available Connector

ascasc (2)

If you have any color request, let us know the Pantone color No.

Test machine

ascasc (3)

85% spare parts are produced by our own factory and with matched test machines, we could confirm the function and standard directly.
