Industrial telephone handset for low temperature environment with different connector A01

Short Description:

With weather proof and waterproof features, this handset was designed for gas&oil telecommunication station,sea ports emergency telephones, Chemical plant and steel plant.

We have a professional R&D team in industrial telecommunication filed for over 20 years and with their experience, we have the ability to customize handsets, keypads, housings and telephones for different applications.


Product Detail

Product Tags

Product Introduction

In order to meet the demand of telephone request used in gas&oil platform or sea port, corrosion resistance, waterproof grade and endurance to the hostile environment are very important factors when choose handsets. As a professional OEM in this filed, we took all the details into consideration from the original materials to internal structures, electrical components and external cables.

For harsh environment, UL approved ABS material, Lexan anti-UV PC material and carbon loaded ABS material are available for different usages; With noise reducing microphone, this handset could be used in noisy plant and environment.
In order to improve the handset’s waterproof grade, we made some change from structure compared with common handsets in market. Then add sound permeable waterproof film on speaker and microphone. With these measures, the waterproof grade reach to IP66 and could meet all the outdoor usage.

Features

PVC curly cord (Default), working temperature:
- Standard cord length 9 inch in retracted, 6 feet after extended (Default)
- Customized different length is available.
2. Weather resistant PVC curly cord (Optional)
3. Hytrel curly cord (Optional)
4. SUS304 Stainless steel armored cord (Default)
- Standard armored cord length 32 inch and 10 inch, 12 inch,18 inch and 23 inch are optional.
- Include steel lanyard which is anchored to telephone shell. Matched steel rope is with different pull strength.
- Dia: 1.6mm, 0.063”, Pull test load:170 kg, 375 lbs.
- Dia: 2.0mm, 0.078”, Pull test load:250 kg, 551 lbs.
- Dia: 2.5mm, 0.095”, Pull test load:450 kg, 992 lbs.

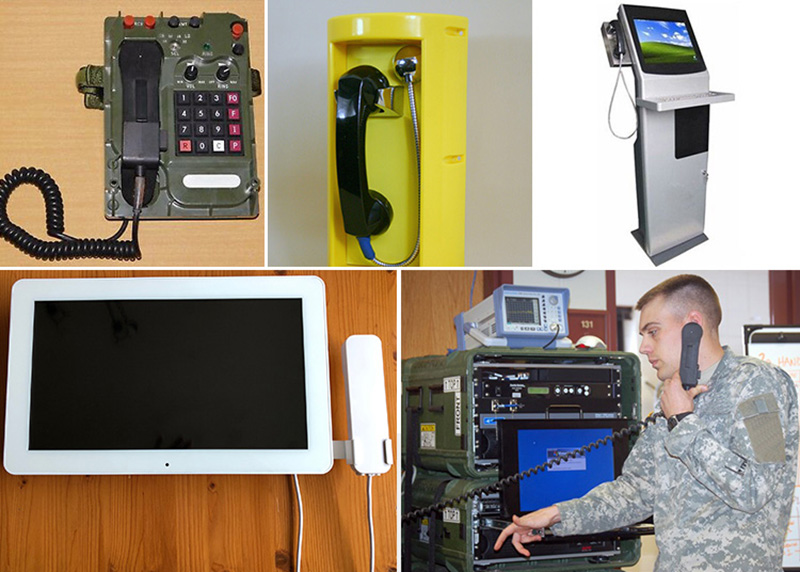

Application

savvb (2)

This weatherproof handset could be used in all the outdoor telephones which set in highway, tunnel, pipe galley, gas pipeline plant, dock&port, chemical wharf, chemical plant and so on.

Parameters

Item

Technical data

Waterproof Grade

IP65

Ambient Noise

≤60dB

Working Frequency

300~3400Hz

SLR

5~15dB

RLR

-7~2 dB

STMR

≥7dB

Working Temperature

Common:-20℃~+40℃

Special: -40℃~+50℃

(Please tell us your request in advance)

Relative Humidity

≤95%

Atmospheric Pressure

80~110Kpa

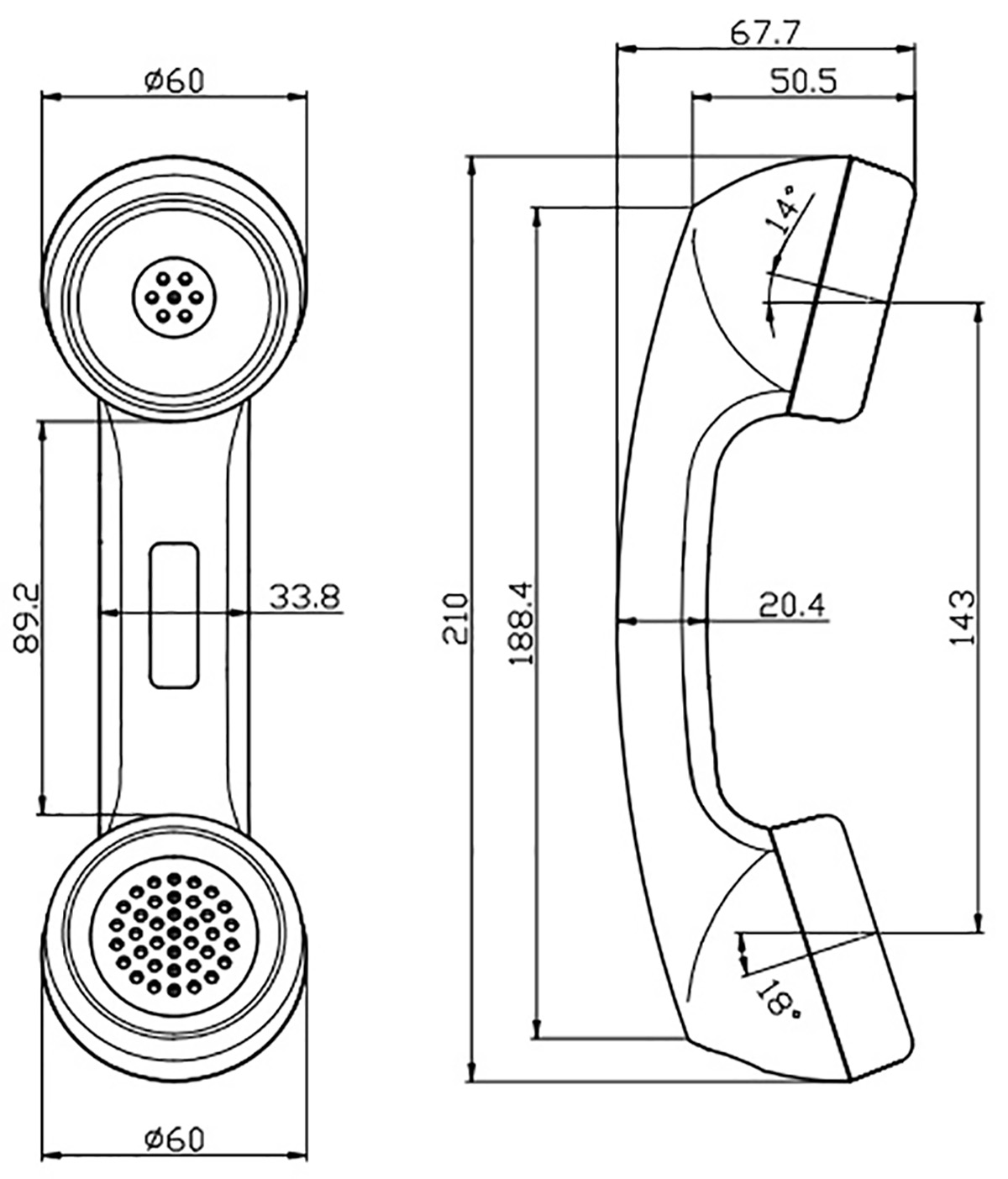

Dimension Drawing

avv

Available Connector

p (2)

Available color

p (2)

Test machine

p (2)
